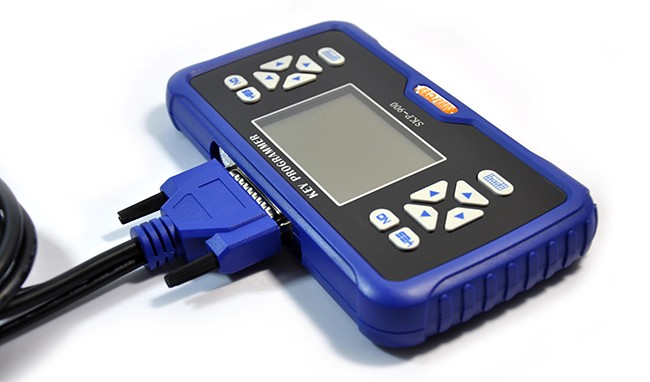

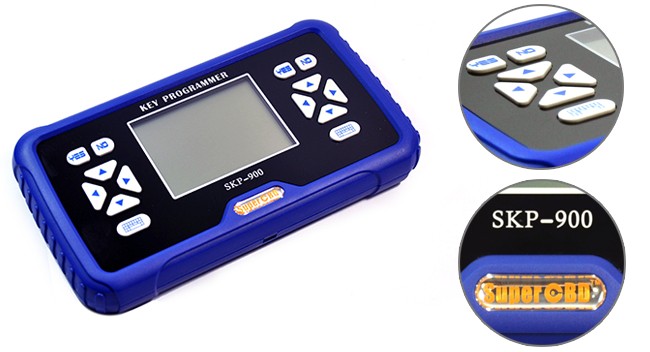

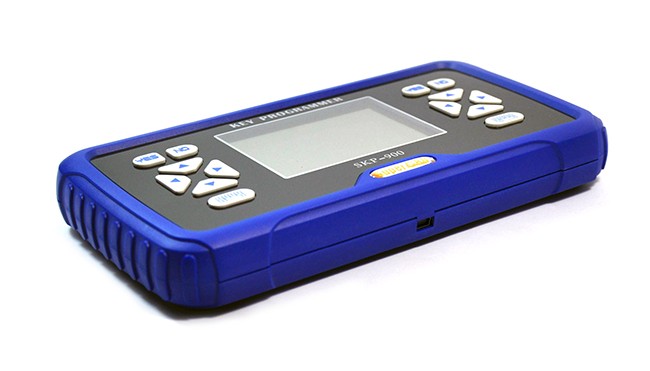

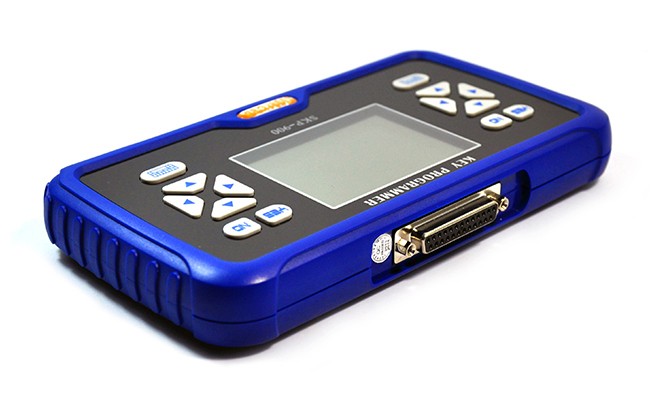

SuperOBD SKP-900 Key Programmer is Hand-held OBD2 key programmer. SKP-900 Key Programmer can support almost all cars in the world, such as Ford, Land Rover, Chrysler, Jeep, Toyota, Nissan, Honda, Mitsubishi, Hyundai, Kia, and so on...

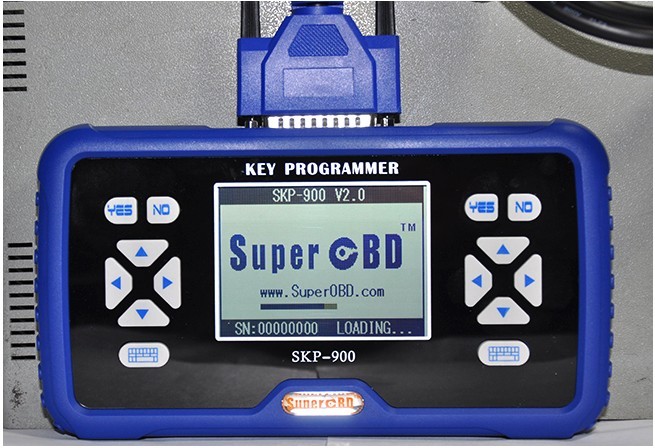

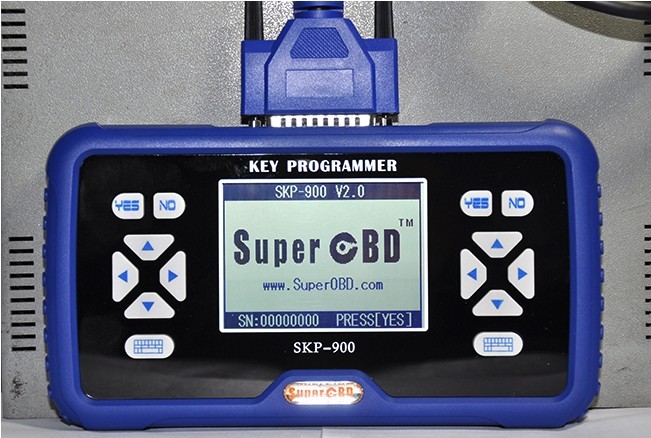

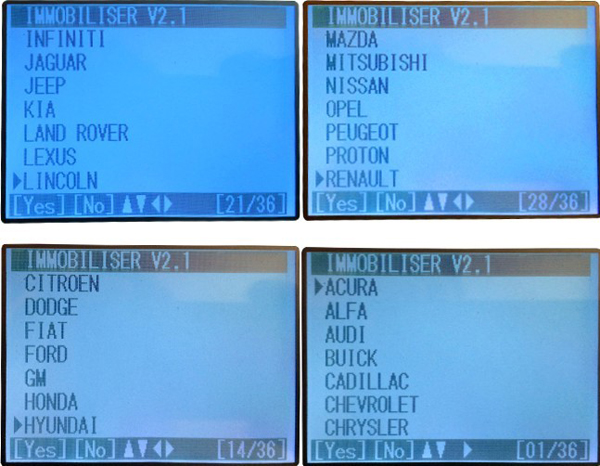

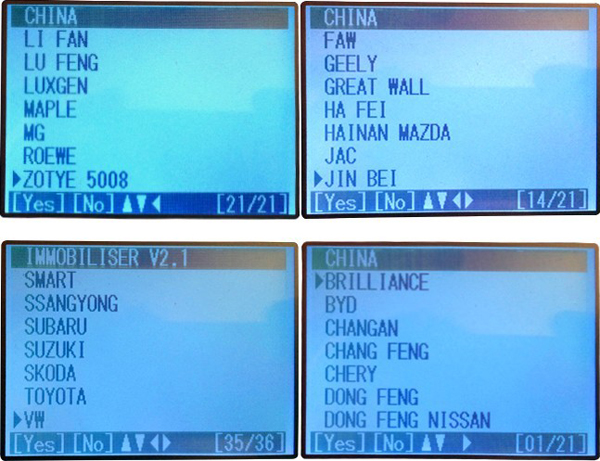

SKP-900 Screen Display:

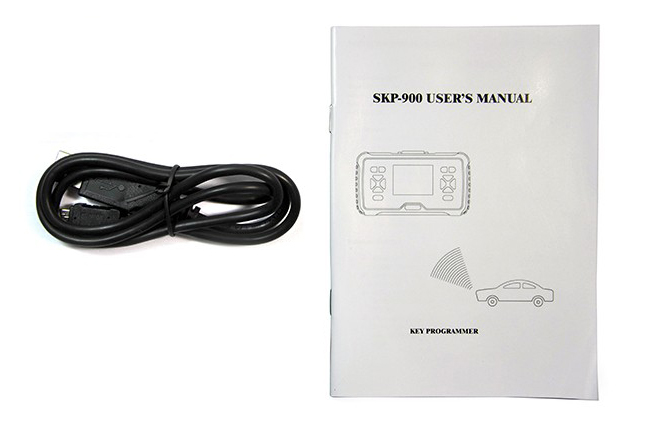

SKP900 Products and Software Display:

Autosnap� KP818 Auto Key Programmer is a handheld device for programming keys in immobilizer units on vehicles. Autosnap� KP818 has a simple and robust design, to make your vehicle service experience much easier!

Autosnap KP818 Auto Key Programmer

Function

1. New keys programming
2. Reads keys from immobilizer's memory
3. New immobilizerprogramming
4. New ECUprogramming
5. New mechanical key number programming
6. Vehicle Identification Number programming
7. Reset ECM & reset immobilizer
8. Easy to operate by the guided menu programming
9. New remote controller programming
10. With full and strong database for the most important vehicle makes
11. Upgradeable via web-based download over standard USB cable

Vehicle Coverage

Please check our techinical service vehicle list.

Specification

Display: Backlit, Colorful, 320x240 pixel
Operating Temperature: 0 C to 60�C (32 to 140F�)
Power: 10 to 15 volts provided via vehicle battery

Package List:

1pc x Main Unit
1pc x User's Manual
1pc x Extension Cable
1pc x CD software
1pc x USB cable
1pc x OBDII Adapter

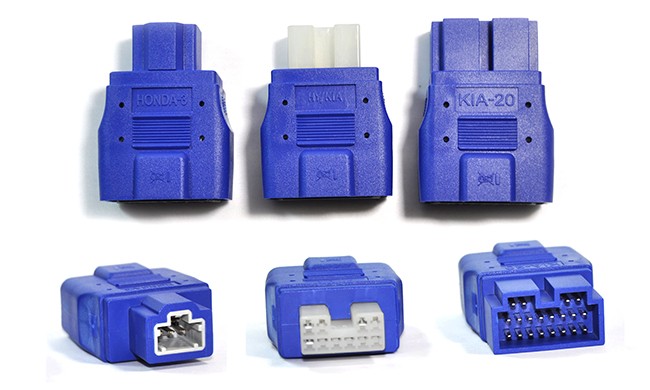

1pc x Optional Adapter Kits (Honda 3pin)
1pc x Carry case

Renault Megane & Scenic (1999-2003) 8 digits PIN code reading via OBDII
Renault Megane - 1999 to 2003
Renault Megane Scenic - 1999 to 2003
Notes: Renault Explorer for the car after 2003 with canbus.So this cable is not same as Renault Explorer.

Renault PIN Code Reading Key Programming

Renault PIN Code Reading Key programming is not the same as Renault Explorer.
What is difference between Renault PIN Code reading Key programming and Renault Explorer?
Renault PIN Code reading Key programmer works for Renault cars from 1999-2003 which is K Line. Renault Explorer works for Renault car after 2003 which is CAN line.

What Renault PIN Code reading programmer can do?
It can read immobilizer PIN code and Key programming on Renault Megane and Megane Scenic modules with UCBIC (BSI) module from 1999 to 2003 year via OBD II.

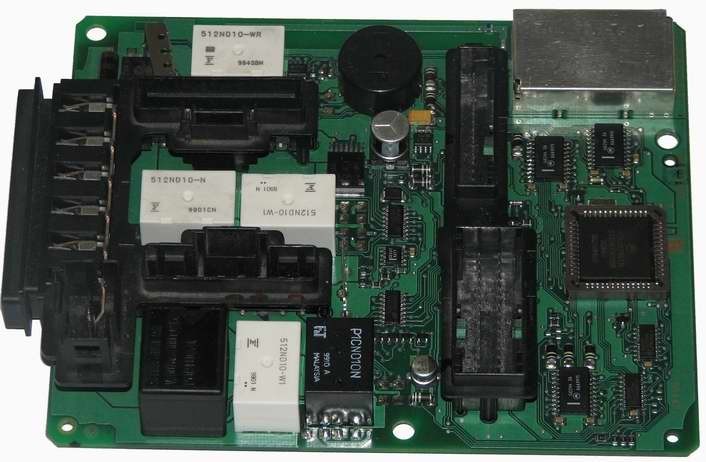

UCBIC (BSI) Module Like This:

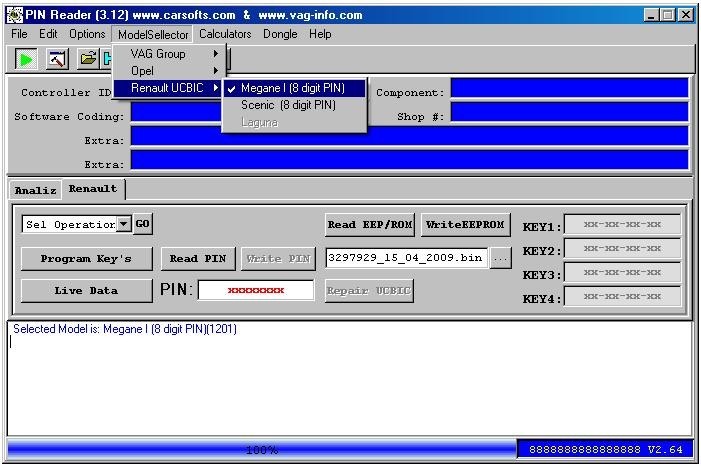

PIN Code Reading and Key Programming Procedure:

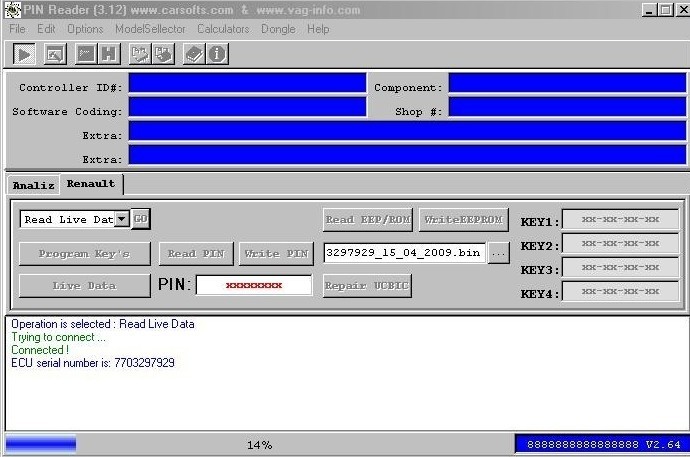

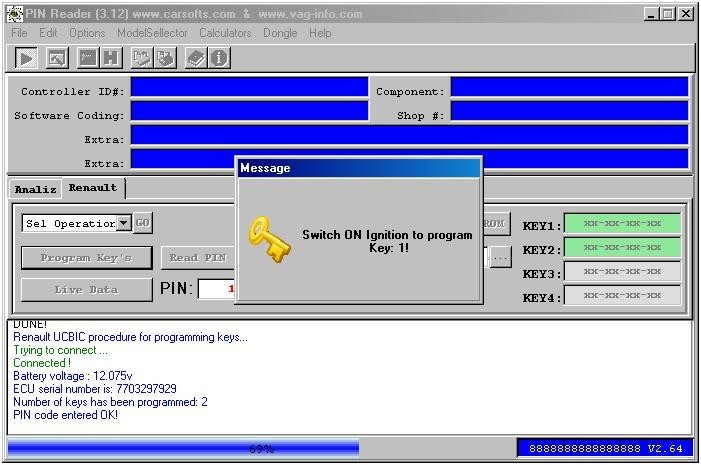

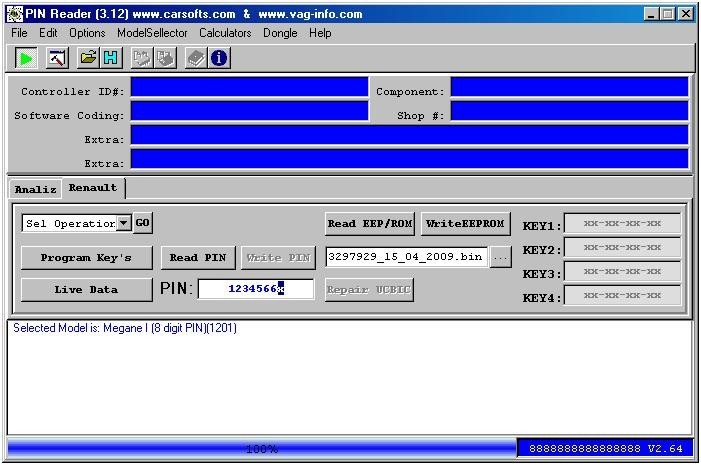

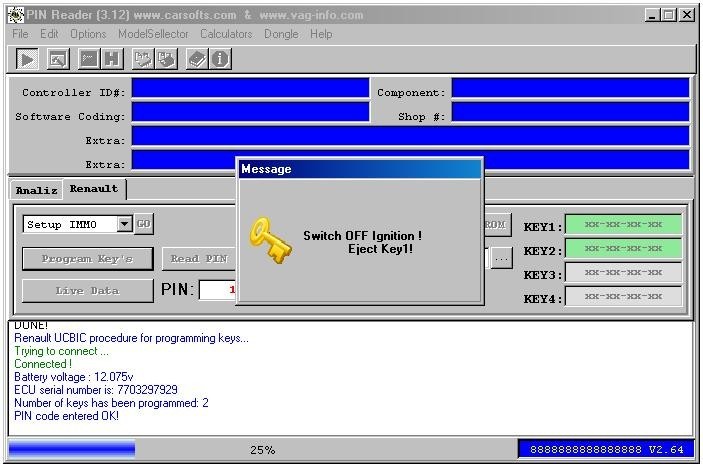

Start PINReader.exe VER 3.12 Select from Model Selector "Renault UCBIC" - "Megane I (8 digit PIN)" or "Scenic (8 digit PIN)". Click "Program Key's" for PIN reading and Key programming...

After Read PIN code started "Renault Megane/Scenic Key programming procedure".
After this message insert first Key to program. Switch On Ignition

After "Switch OFF Ignition" first Key is programmed.

Programming procedure for the next key is analogous...

Manual entering PIN code

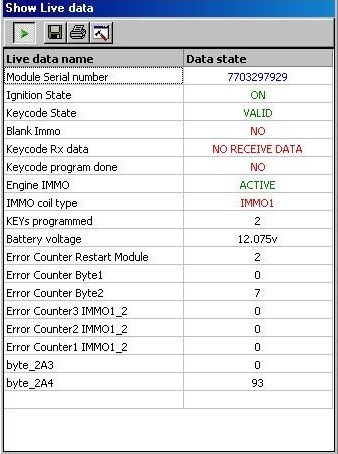

Read Live Data from UCBIC Module

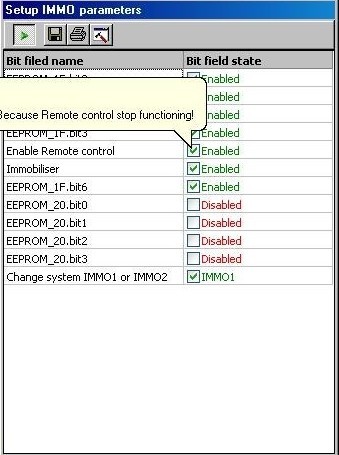

Read and change Setup IMMO parameters

Package List:

1pc x Renault Pin Code Reading Cable
1pc x CD Driver

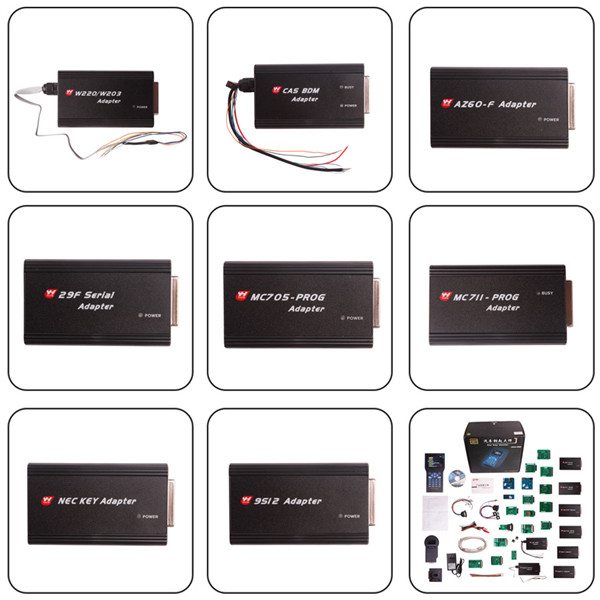

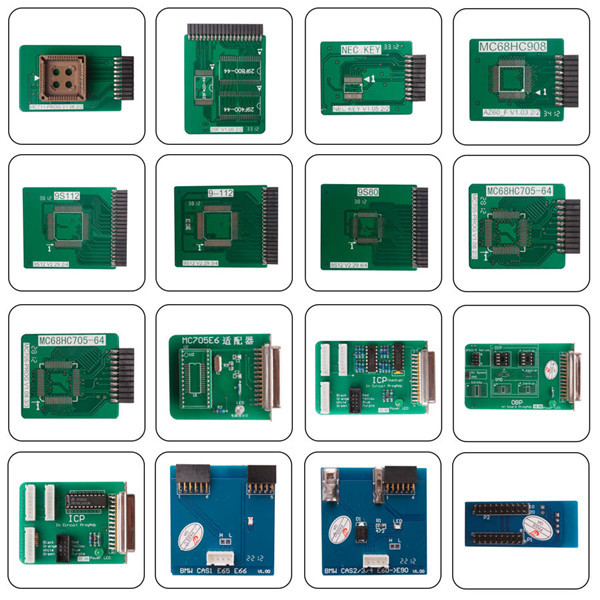

Car key master ckm200 works with BMW, BENZ and more vehicles. CKM200 supports run with PC and also supports work alone.ckm200 multi-functions including: key information reading, data calculating, key writing, and is applicable to both old and new.

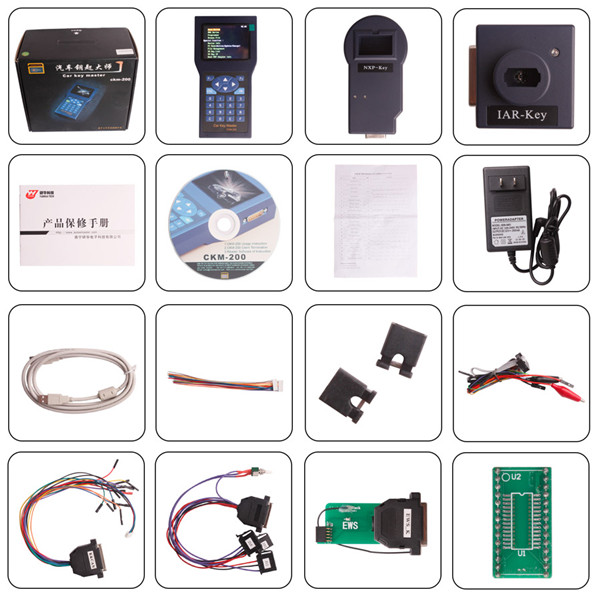

Car Key Master Handset with Unlimited Tokens

CMK 200 Features

BMW & BENZ and more vehicles are coming out soon.
Both PC and handset models for your choice.
Multi-functions ----Integrate functions such as key information reading, data calculating, key writing, and is applicable to both old and new.
Easy operation ----Graphical workflow will make it easy for your operation.
Whats more, our Car Key Master can be operated via OBD socket, CAN or K line on many models without disassembly.
High security G3 platform ----Besides USB communication and online update, our G3 (the third generation) platform is especially featured by its high security: hardware anti-cracking and software anti-copying, adopting IDEA (International Data Encryption Algorithm) for registration, upgrade and payment.
Bran-new keys ----We will cooperate with German technology, and launch the bran-new keys for all the BMW and Mercedes Benz. At that time, you can get rid of the key shortage and no need to use any renovated second-hand keys.

CKM 200 Supported Car Models

Benz Series:

Benz S CLASS (W140.W220)
Benz CL CLASS (W215)
Benz SL CLASS (R230)
Benz E CLASS(W210.W211)
Benz CLK CLASS(W208.W209)
Benz CLS CLASS (W219)
Benz C CLASS (W202.W203)
Benz ML CLASS (W163)

BMW Series:

Old Style BMW (EWS2.EWS3.EWS4)
BMW 1/3/5/6 (E87.E90.E91.E92.E60.E61.E63.E64)

Series White CAS2
BMW 1/3/5/6/X
(E87.E90.E91.E92.E60.E61.E63.E64.E70)Series

Black CAS2
BMW 1/3/5/6/X
(E87.E90.E91.E92.E60.E61.E63.E64.E70.E71)Series
black CAS3
BMW 7series E65.E66 CAS

CKM 200 FAQ:

Q: What year for bmw cars can CKM200 do? It can do new cars?
A: CKM200 can do BMW Cars before 2009, can not support new BMW car.

BMW HIT+2.01 CAS1 PRO combines the function of Hitag-2 programmer and BMW scanner 2.01 in one unit,BMW HIT+2.01 CAS1 PRO can be used to program key for BMW CAS1 and to diagnose BMW cars models.

BMW HIT+2.01 CAS1 PRO

Note: Diagnose the car before the year 2006, if you want to copy keys, it only can read data for BMW CAS1 system, can not do other BMW system.

How to Program Key by Hitag2 Programmer:
Hitag2 programmer is a universal key programmer, with additional option of key programming from dump. Just insert blank key or appropriate transponder you need to program, Hitag will be able to detect the transponder type and operate all steps automatically.

Key Generation from Dump is Available for The Following Cars:
Support BMW (2002 -2009 years) CAS/CAS2/CAS3 DG512 / CAS3 + DP512
Support matching BMW (2002 -2009 years) CAS/CAS2/CAS3 DG256 / CAS3 + DP512 key and remote control; the world's unique tec

Feature of Hitag-2 Programmer:
ALL types of Hitag2 transponders are fully supported!
Widest range of supported cars, using Hitag2 protocol!
Deep research work, has allowed us to make device, as much as possible correctly adding keys in the car, without damage to its functionality!
Correct BMW key programming - RADIO REMOTE is working!

Supported Transponder Types:
PCF 7936
PCF 7941
PCF 7942/44
PCF 7943
PCF 7945
PCF 7946
PCF 7947
PCF 7952

Supported Transponder Modes:
Password mode
Crypto mode

Supported Protocols:
Manchester
Biphase

BMW Scanner 2.0.1 Workable BMW Cars Models:
It is intended to work with BMW 1, 3, 5, 6 and 7 series in "new" chassis.For chassis E60/E61(5') E63/E64(6') E65/E66(7') E87(1') E90/E91(3')

BMW Scanner 2.0.1 Function:
Connecting with all electronic control modules in the vehicle.
For all electronic control units reading identification data, sw/hw versions, user information fields.
For all electronic control units read and clear error (DTCs) memories - standart, shadow, history memory.
Possibility to read/program memory of electronic control units (including CAS modules).
Synchronization DME/DDE and CAS.

Note
It can only do the year before 2006.
If you want to do key program, it can only be available on CAS1

Package List

1pc x BMW HIT-2.0.1 CAS1 PRO
1pc x USB Cable
1pc x CD Driver

KP819 KP-819 Auto Key Programmer (Mazda, Ford, Chrysler, Landrover, Jaguar no need password)

KP819 KP-819 Auto Key Programmer (Mazda, Ford, Chrysler, Landrover, Jaguar)

No Password Needed!

KP819 Key Programmer Car Model List:

BMW Multi Tool includes forth parts, hardware device, dongle, programmer, software. Before running software you must connect dongle and hardware device to computer.
Newest Version:V5.9

Latest BMW Multi Tool

Powerful Than AK300!!!
Software Version: V5.9
BMW Multi Tool V5.9 Software Free Download
Warning: Make sure connect dongle to compute before run the software.

BMW Multi Tool V5.9 Update Tips:

1.Fix bug make dealer key for EWS4
2.Normal bugfix

BMW Multi Tool V5.9 Description:

1. OBD II CONNECTOR: Connects the tool to the vehicle's Data Link connector (DLC).
2. Dongle: USB dongle.
3. USB CONNECTOR: Connects the tool to the PC/Laptop through USB Cable.
4. Programmer: Program keys.
5. Programmer Female Pin: Connects programmer to device.
6. Programmer Male Pin: Connects programmer to device.

BMW Multi Tool V5.9 Specifications:

1. Operating Temperature: -20 to 70 �C ( -4 to 158 �F )
2. Storage Temperature: -40 to 85 �C ( -40 to 185 �F )
3. Diagnostic Interface: 16 PIN
4. USB Interface: USB 2.0
5. Power: DC 5 V - 12 V
6. Consumption: 1 W

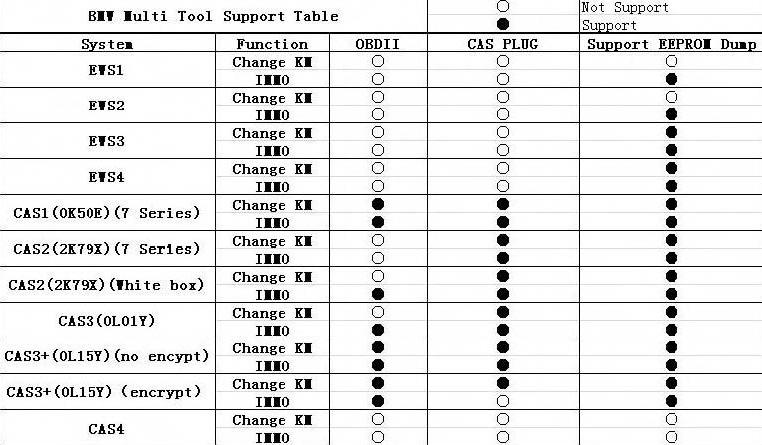

BMW Multi Tool Supported Immobilizer Type and Function

BMW Multi Tool V5.9 Supported Function Including:

1. Car access sytem dentification
2. Read/Write CAS EEPROM(OBDII)
3. Read/Write KM stored in CAS system(OBDII)
4. Read/Write synchronization codes stored in CAS system(OBDII)
5. Synchronize DME and CAS(OBDII)
6. Synchronize CAS and ELV(OBDII)
7. Prepare dealer key for CAS1/CAS2/CAS3/CAS+(support latest CAS3 verison)(OBDII)
8. Read/Restore CAS KEY information(OBDII)
9. Disable/Enable key with working key(OBDII)
10. Clear DTC and Shadow (OBDII)
11. Prepare dealer key with CAS eeprom dump
12. Unlock dealer key prepared with our software with CAS eeprom dump or KEY information
13. Change KM in CAS and instrument dashboard with file dump
14. Have key programmer, you can programm dealer key directly.

Pay Attention to the Function: Help->Device update.
You can get the latest software version and firmware verion when you can access to internet.

1. Menu:
- Tool: you can choose language here, support "English" and "Chinese Simplified" Restart software to apply your settings.
- File Make Key: you can prepare dealer key with EWS and CAS EEPROM dump.
- Help: Device update. You can get your device and dongle id version and update it.

2. Protocal Type:
Now BMT support there type of protocol: KWP-CAN BUS 100Kbps, KWP-CAN BUS 500Kbps, KWP-2000. "Auto Detect " function can help you to choose the right protocol. After choose protocol okay, then press "Connect". If connected success. All CAS info will display in CAS Identification. Include CAS number, VIN, production date, etc.

3. EEPROM Function:
Read EEPROM, Write EEPROM, Save File, Load File...
1). You should backup the CAS EEPROM before prepare dealer key. After succeed read EEPROM, please save it as back file. This step is very important.
2). Now can't read the whole EEPROM for cas3 system. But the main section is contained. It should be saved. When you read CAS EEPROM, it will give tips (Press ok to continue).

4. Odometer:
Support read and change KM stored in CAS system.
Don't support to change KM in instrument. If you want to change the KM display in instrument. You should change KM in CAS system first. Then modify the KM in instrument manually.

5. Synchronization Codes:
1). CAS3 code-DME, CAS3code-EGS: Read and write DME and EGS code stored in CAS3 system.
2). Synchronize DME and CAS� this function will be useful while prepare dealer key or any other operation which cause can't start the engine.
3). Synchronize CAS and ELV � this function can help clear wheel errors

6. Key Learn
1). Get Key Info: With this function you can get the key cutting, remote frequency, and key data.
2). Save Key Info: Save the read key info.
3). Load Key Info: Load the saved key info. To see the key data and prepare for write key info.
4). Write Key Info: Write the loaded key info into CAS system.
5). Make Dealer Key: You can prepare dealer key after you get key info successfully. Also you should choose the key position.
6). Add key: Add the new dealer key into CAS system. Some CAS system needs this step to start the engine.
7). Enable Key: Insert the current key into ignition switch, press "Enable Key". The key after current key will be enabled.
8). Disable Key: Insert the current key into ignition switch, press "Disable key". The key after current key will be disabled.
9). Clear DTC: Before prepare dealer key and after it you can use this function to clear DTC.
10). Clear Shadow: Before prepare dealer key and after it you can use this function to clear Shadow.

7. File Make Key
1). Choose CAS or EWS type.
2). Load the choose EEPROM file you will get the make dealer key window.
3). Choose key position and press "Make Dealer Key" button. Flow the given tips to prepare dealer key. After succeed you can save the new EEPROM dump file.
- For EWS1, EWS2, EWS3, EWS4, CAS1, CAS2, CAS3 type the prepared dealer key can start the engine directly.
- For some CA3+ type you need to write back the new dump file into car.
4). CAS3 encrypt data, only OBDII prepare make key is support for CAS3 encrypt data.

FAQ:

Q:Could you please let me know if it has EWS function ?
A:Yes,it can do EWS,you need to detach the device then connect with CAS socket to read EWS data.

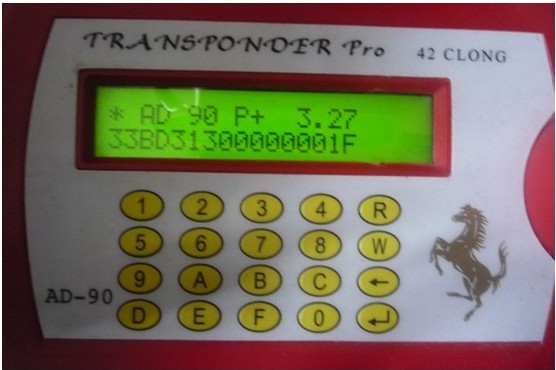

AD90P+ key duplicator features the most innovative electronic components in the field of radio frequencies thus allowing easy detection, reading and cloning (duplication) of fixed code transponders and the identification of cryptographic transponder codes.
Newest version: V3.27

AD90 AD90P+Transponder Key Duplicator Plus

Software Version: V3.27

AD90 Transponder Key Description:
1.The professional duplicating machine, AD90, has been designed and built to keep pace with the constant evolution of transponder car keys.
2.The AD90 key duplicator features the most innovative electronic components in the field of radio frequencies thus allowing easy detection, reading and cloning (duplication) of fixed code transponders and the identification of cryptographic transponder codes.
3.The AD90 in addition has major features such as copying of Crypto 42 type transponders and the Texas 4C and 4D transponders. These are additional options but make the AD90 a powerful tool.
4.The AD90 has been developed to allow for future developments and to keep up to date with the ever expanding technology of transponders within the Automotive vehicle systems.
5.As well as Transponder systems, the AD90 will also be developed to offer new and exciting facilities which will further advance its capabilities.
6.The machine of the future for transponder developments, is the AD90....

Specification:

1.Features:
Identify transponder
Copy transponder
Software update from Internet
Usable with PC software
Available to be used with the Chip Decoder System
AD90 can detect,read and duplicate Philips,Megamos,Temic and Texas transponders

2.Reads Fixed Code Fransponders:
Philips PCF7930/31 C Silca 33,73
Philips PCF79 35 40,41,42,44,45
Temic C Silca 11, 12
Megamos C Silca 13
Silca T5
Texas C Silca 4C

3.Recognises:
Megamos crypto C Silca 48,
Philips crypto C Silca 46
Texas crypto 4D (60 universal, 61 Mitsubishi, 62 Mitsubishi, 63 Ford, 64 Renault before year 2000, Chrysler, Jeep, 65 SUZUKI, 66 SUZUKI, 67 TOYOTA/LEXUS, 68 TOYOTA/LEXUS2, XX new or universal) NEW!!
Fixed 11,12,13,33,73,4C,T5
Crypto 40,41,42,44,45,4D,48
Rolling + Crypto 46

4.Copies:
11,12 Temic
13 Megamos
33
42
4C Texas
T5 20 Nova

AD90 Transponder Key Software Display:

Packing List:

1pc * AD90 key Duplicator
1pc * 42 duplicate module
2pcs * Power adapter

ND900 Auto Key Programmer with 4D Decoder, has been designed and built to keep pace with the evolution of transponder car keys. The ND900 Pro key duplicator features the most innovative electronic components in the field of radio frequencies thus allowing easy detection,reading and cloning (duplication) of fixed code transponders and the identification of cryptographic transponder codes.

ND900 Auto Key Programmer

Note:
1. ND900 Update Website:
(You need to update to the latest software first, then you can use it together with 4D Decoder.)
2. ND900 4D Decoder:
Connect directly with ND900 multiplexer, then you can copy 4D chip, no need to connect with the laptop.

Description:

The ND900 Pro has been developed to cater for future developments and to keep up to date with the ever expanding technology of transponders within the Automotive vehicle systems.
The ND900 Pro offers complete flexibility as once the main unit is purchased the functionality can be expanded by adding additional software.
The machine of the future for transponder developments, is the ND900 Pro....for professional locksmiths.
ND900 can directly copy all of 4D4C.(4C.4D=ID60.61 62 63.65.66.67.68.69), use FREE CHIP. The chip can be copied repeatedly, typeYS-01, only chip.

ND900 Detail:

The professional duplicating machine, Transpronics, has been designed and developed to assist immobilizer system specialists. Transpronics is not only a duplicating machine; it is also a unique machine that can make transponders from eeproms in immobilizer boxes when a customer has lost all keys. It can also inform you if a transponder is locked or not. It has been developed over 4 years. It can copy most crypto transponders like 42, 45,4D, most of 44 VAG and some 40 and 41 transponders. It can copy Texas fixed transponders to TPX1 without battery transponders.

Easy and convenient generator of microprocessor software dumps
Support of keys based on the NEC controller. Such as 0x28, 0x35, 0x40, 0x51, 0x57, 0x61, 0x71, 0x81, 0x229.
Ability to check status and proper operation of Electronic Steering Lock (ESL)
Ability to program ESL right on a car (No need to replace it)

New BENZ IR NEC Key Programmer

Benz Ir NEC Description:

Easy and convenient generator of microprocessor software dumps
1.Support of keys based on the NEC controller. Such as 0x28, 0x35, 0x40, 0x51, 0x57, 0x61, 0x71, 0x81, 0x229.
2.Ability to check status and proper operation of Electronic Steering Lock (ESL)
3.Ability to program ESL right on a car (No need to replace it)

Supported vehicles:

1.W202 (MC68HC05X32 x 2 controller)
2.W203 (MC68HC908AZ60 controller)
3.W208 (MC68HC05X32 x 2 controller)
4.W209 (MC9S12DG128 controller)
5.W210 (MC68HC05X32 x 2 controller)
6.W211 (MC68HC912DG128A controller)
7.W215 (MC68HC908AZ60 controller)
8.W220 (MC68HC908AZ60, MC68HC05X32 x 2 controller)
9.W230 (MC68HC908AZ60, MC68HC05X32 x 2 controller)
10.W639 Vito (MC68HC908AZ60 controller)

Package list:

1pc x NEC controller programming tool
1pc x Adapter to work with NEC controllers (for soldering)
1pc x USB-cable

AK300+ BMW CAS Key Maker (Support in 2002 -2009 years) especially for BMW CAS system key programmer.Support new BMW CAS,CAS2,CAS3,CAS3+. Automatic analysis CAS data,easy to match keys.

BMW CAS AK300+ Key Maker

Firmware Version: 1.16
Software Version: 1.50


AK300+ Features:

1 BMW CAS supports a diagnosis of communication directly through the OBD port or through the CAN BUS port security to read and write data EEPROM;
2 automatic analysis CAS data, automatically displays the BMW keys to use quantity; key tooth number; remote control frequency; CAS with the DME synchronization ID; keys scrapped the state, etc.;
3 supports key scrapped or restart using the old key; this technology unmatched global technology;
4 supporting the rehabilitation of CAS computer (due to transfer table is damaged or programming lock);
5 supports the new 2002-2009 BMW CAS; CAS2; CAS3; CAS3+
6 support the horse CAS; CAS 2; CAS 3; CAS 3 + BMW and BMW remote key.
7.support E65/E66/E87/E60/E61/E90/E91/E92/E93/E71/E71

Package List:

1.AK300+ Host (1 PCS)
2 AK300+ USB communication lines (1 PCS)
3.AK300+ Switching Power Supply (1 PCS)
4.AK300+ OBD-11 communication lines (1 PCS)
5.AK300+ CAS computer wiring board (2 PCS)
6.AK300+ DVD Software (1 PCS)

FAQ:

Q:How to use AK300+?
A:CAS1 for 2001-2005 E65/E66
CAS2 for 2004-2006 X5/E60/E90
CAS3 for 2007 E60/E90/X5/X6
CAS3+ for 2008-2009

Zed-BULL is a transponder cloning device which contains all of Zed-Qx's features and also has more additional features. Zed-BULL will fulfill all your requirements on Immobilizer Systems.
Software version:V508
Hardware version:V5.02
Language: English, Turkish, Italian, Spanish, Portuguese

ZED-Bull Transponder Clone Key Programmer Tool

Highlights:
Software Version: V508
Hardware Version: V5.02
No Tokens, No Login Card Needed!
Supported Languages: English, Turkish, Italian, Spanish, Portuguese

Description:

1. New: support 8C and 8E chips distinguish function
2. Language: English, Turkish, Italian, Spanish and Portuguese
3. Zed-BULL will fulfill all of your requirements as professional on Immobilizer Systems;
4. Zed-BULL is a transponder cloning device which contains all of Zed-Qx's features and also has more additional features.

Host of remote controller (Remote master) for copy kinds of wireless RF remote controller! It's suitable for key&lock shop, locksmith, and car service shop!

H618 Host of Remote Controller(Remote Master) For Wireless RF Remote Controller

Latest version: QN-H618-1303.23600
Language: English
Update: Via Email or CD
Warranty: 1 year

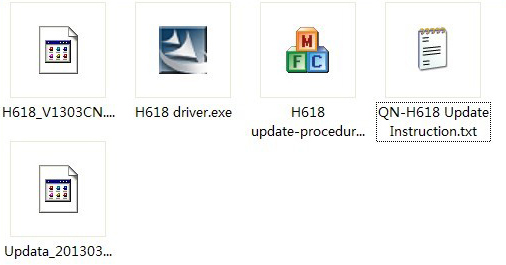

QN-H618-1303.23600 updated information as following:
1. Add Cross V2 Model
2. Add Liberation J6 Model
Note: The above models only support remote controller vesion upon 1251 , The lower version or copied version cann't be supported.

Remote Controller Function:

1.Frequency indicate (25MHz-1GHz)
2.Data Detect
3.Duplicate /learn Fixed code remote
4.Duplicate /learn part of Rolling code remote
5.Duplicate /learn part of original car keys
6.Read/duplicate RFID
7.Compare data (Frequency, data, etc) between remotes after copy
8.Regenerate new remote control
9.Online upgrade via an USB
10.Chinese/English bilingual support

Remote Master Specification:

200x130x53mm (bare machine)
270 x 215 x 65mm (package)
Packing:color carton box
Input voltage: AC 100~240V
Output voltage:15V
Output current:1A
Operating Temperature: -20~ 85℃

Host Remote Master Feature:

1. Nice appearance design, Large 128*64 LCD display
2. Our host of remote controller (remote control machine) is design for easier operated and have more powerful function. It has nine buttons, among which 5 function buttons, 4 arrow buttons.


Package list:

1pc x host of remote control
1pc x power adapter
1pc x Remote connecting wire 1
1pc x USB update wire
1pc x operate instructions
1pc x Certification

Throughout the entire operation the device must be connected to the PC in the "CONNECTED TO PC " mode.
Duration of the entire operation varies from some tens of seconds to some minutes, according to the key to be copied and the power of the computer used.

4D Cloning Tool

HOW TO Make a Copy of a Key with 4D Cloning Tool Program?

1. If you plug 4D CLONING TOOL device in USB port first time operation system offer to install the driver of located device.
2. Choose the manual installation method with point of driver directory (it is 2nd method).
3. Point the directory to folder "FTDI / driver " from CD. If you have done everything correctly, then the operation system will confirm that the new device already installed and ready to work.
4. Detect the number of USB port in which you plug in the 4D CLONING TOOL device.
5. Click by right button on "My computer " icon.
6. Choose "System property -> equipment->devices manager ".
7. Open "Ports (COM and LPT) ".The virtual COM port of device connection will located like "USB Serial Port ".The copy works for keys used on the vehicles indicated in the specifications attached to this document, or accessible through the INFO button in the 4D CLONING TOOL program.Start the "4D CLONING TOOL PROGRAM " from the Menu:Start Programs 4D Cloning TOOL Program of the "4D CLONING TOOL " type of device in your possession which it is connected, then click on that the program can detect the communication. If the version of the not up to date, a special message update.
8. Make sure the device is on, connected to the PC by the serial port, and the display shows "CONNECTED TO THE PC ".For the device to operate properly, do not place it close to the PC monitor, PC, power input point, or other electric equipment that generates magnetic fields.When the program has detected the device click on the "Start " button on the same video screen:Every time the "Start" button is pressed the settings selected will be saved on the disk.Follow the instructions on the PC video, complete with illustrations and short descriptions of the operations to be carried out at each step.

4D Cloning Tool Notes:

1) Throughout the entire operation the device must be connected to the PC in the "CONNECTED TO PC " mode.
2) Duration of the entire operation varies from some tens of seconds to some minutes, according to the key to be copied and the power of the computer used.

VVDI for the vehicles VW Audi is a Windows-Based diagnostic software. It includes ImmoPlus, VAG Commander software, Tag Key Tool function. Powerful function tool for VAG vehicles. Now the latest version is V19.2, can update free and frequently, and also very easily.

Newest Update for Immoplus V19.2

VVDI Immoplus V18.0 Software Free Download
VVDI Immoplus V19.0 Software Free Download

How to Update VAG Vehicle Diagnostic Interface VVDI?

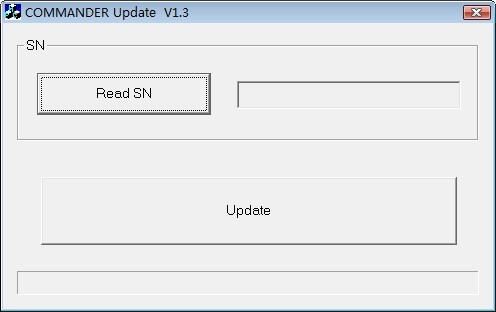

1. Please use this software: Commander Update V1.3 on your CD.
2. Give us the serial number
3. We send you update file by email.

VVDI Includes 3 Parts: ImmoPlus, VAG Commander software, Tag Key Tool function.
1. ImmoPlus supports prepare delaer key for VAG new cars. Such as VW 4th/5th immobilizer. Even the car lost all working key or with keyless.
2. VAG Commander Software can do diagonistics for VAG cars. Also change KM, read PIN, learning key etc.
3. Tag Key Tool is used for chipset read/write. Make key with eeprom dump file etc.

V19.2 Update

1.Fix bug for some MED17/EDC17 loadeeprom/flash get PIN,CS,MAC
2.Fix bug for some A6/Q7 OEM key and wirte A6 OEM immo info.
3.Add more car auto detect
4.bugfix

Support Car List:

VVDI Immoplus V15.0 Upgrade Instructions:

China VAG Vehicle Diagnostic Interface VVDI Function Added:

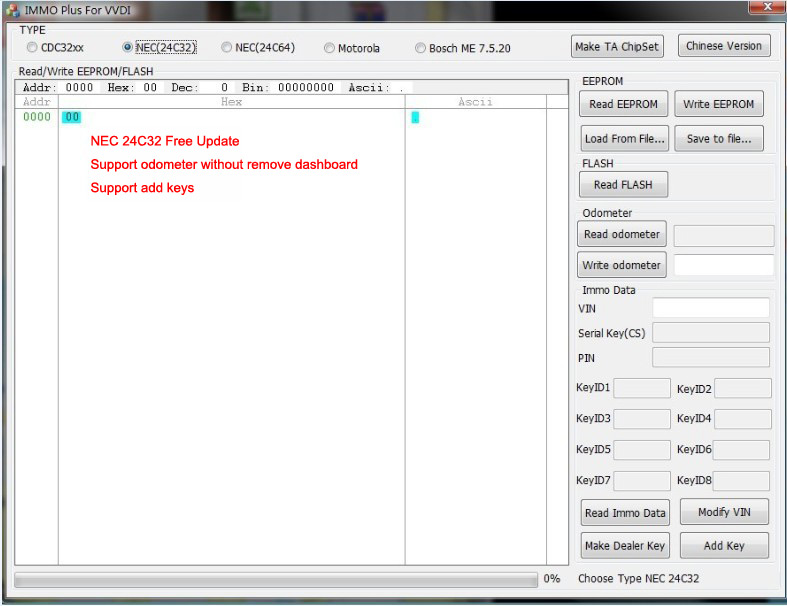

1. Support NEC 24C32, NEC 24C64 change mileage through obd2, generate dealer's keys, read and write EEPROM and backup flash data.
2. Support GOLF5 MM7(9S12) change mileage through obd2, generate dealer's keys, read and write EEPROM and backup flash data.

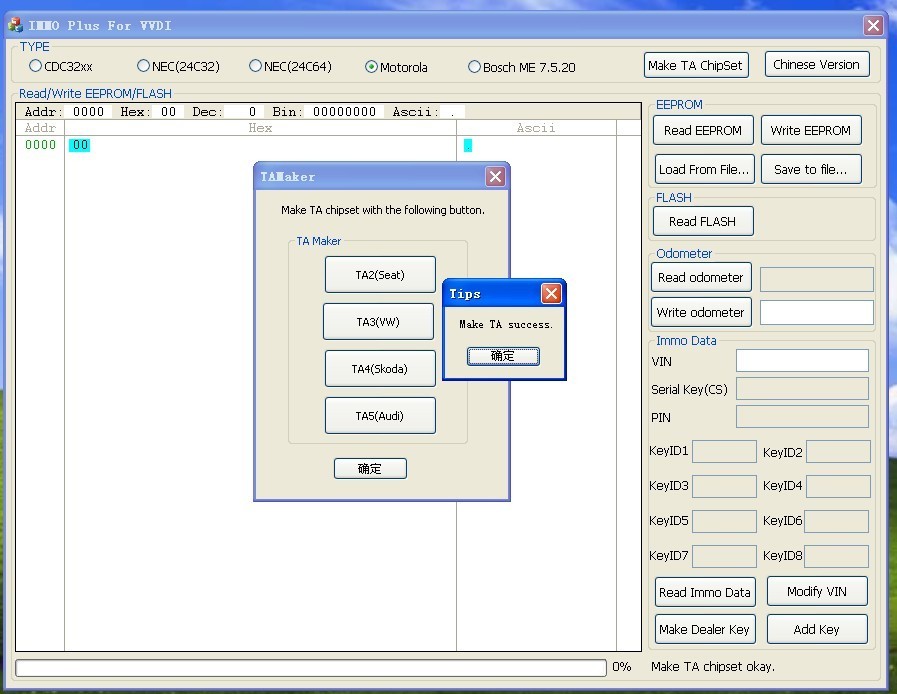

3. Add TA special chip pre-program. Directly pre-program ID48 to TA2,TA3, TA4, TA5 chips.

Function:

1) Extracting security access codes (PIN) by OBDII
2) Programming keys by OBDII. Preparation of dealer's keys.
3) Mileage recalibration by OBDII
4) Clearing crash data DTCs by OBDII
5) Read/Program flash memory of engine control units by OBDII. Options for resetting the number of flashing attempts.
6) Exchange speed limit of MMI-TV system

Standard Diagnostic Functions:

1) Connect to the device using KWP2000 over TP2.0, KWP2000 over TP1.6, UDS over ISO transport protocol (CAN), KWP1281 or KWP2000 over K-Line
2) For all electronic control units reading identification data
3) For all electronic control units read error (DTCs)
4) For all electronic control units clear error (DTCs)
5) Scan all units
6) Broadcast requests
7) Measured values
8) Adaptation

Special Functions:

1 Instrument CAN
(1) With this function you can establish diagnostic session with the Instrument cluster using KWP2000 over TP2.0
(2) You can read current odometer value
(3) You can change odometer value
(4) Added support for VDO Instrument Cluster 2006+
(5) Read/Program memory of instrument cluster immobilizer
(6) Reading security access code of the IMMOBILIZER
(7) Read/Write immobilizer related data

2 EZS - Kessy (Q7/A6/Allroad)
(1) With this function you can prepare dealer key/learn dealer key
(2) Read/Write eeprom from EZS - Kessy (Q7/A6/Allroad)

3 Instrument K-Line
(1) With this function you can establish diagnostic session with the Instrument cluster via K-Line (KWP1281 or KWP2000)
(2) You can Read/Change odometer value
(3) Read PIN code
(4) Read/Write eeprom
(5) Read ROM/Flash from the Instrument cluster

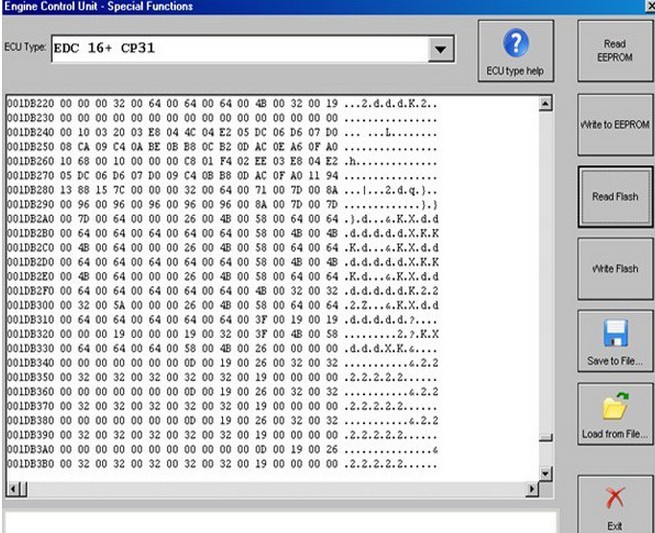

4 Engine Control Unit
(1) Read EDC17/MED17 flash memory
(2) Read/Write of flash memory (EDC15, EDC16 all types Read/Write Flashmemory via OBDII (K and CAN). Calculation of checksums while programming, ME7.1.1, MED9.x, ME7.5)
(3) Read/Write flash counters (EDC16)
(4) Read/Write eeprom (VAG-EDC15x, VAG-ME7.1.1, VAG-ME7.1, VAG-ME7.5, VAG-Cartronic ME7.8.)
(5) Extracting Security access code / PIN (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, EDC17, MED9.x, Simos PPD)
(6) Extracting Component security bytes (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, MED17.5.1, MED 9.x, Simos PPD)
(7) Enable/Disable immobilizer (EDC15, ME7.x, EDC16)
(8) Odometer correction (EDC15, EDC16)

5 Kessy adaptation
This function can be used for adaptation of brand new kessy units to the car. This adaptation can be by CAN TP2.0, K-KWP2000 and also can be used with Porsche Cayenne.

6 TV activation ED1/ED2
(1) Using this special function you can change speed limit of MMI compatible vehicles to change speed where TV becomes OFF

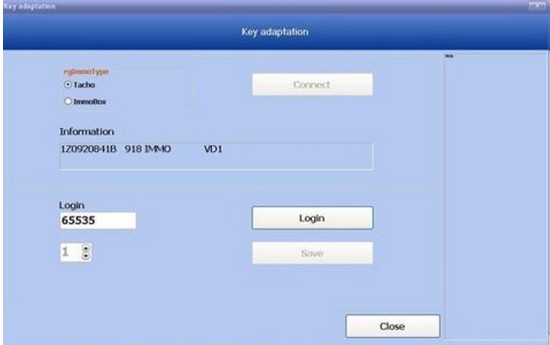

7 Key learning
With this function you can learn key/transponder to the vehicle

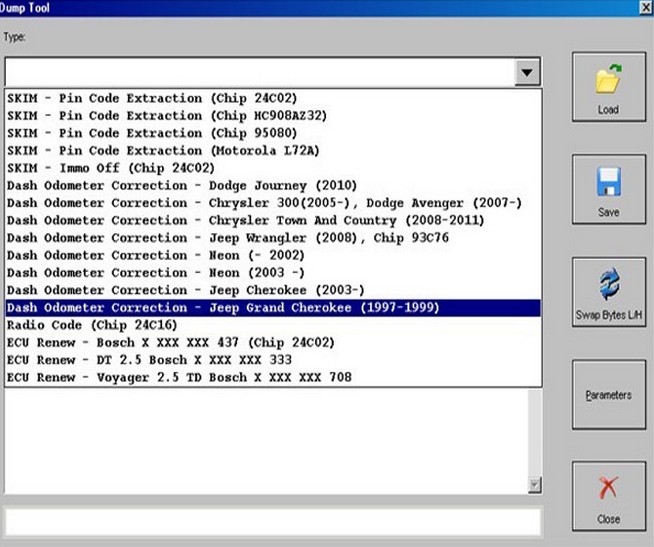

8 Dump tool
With this function you can calculate security access codes, change odometer and so on from EEPROM dump from the corresponding unit

9 Airbag
With this special function you can Read/Write EEPROM memory of the airbag module
Clear the crash data of the airbag module

10 Custom Read/Write
Using this application you can read/program memory in some electronic control unit

11 PIN Convertor

12 Service interval
Using this function you can perform reset of the service reminder, reset of the service interval parameters or change service interval options

13 Remote control adaptation
Using this application, you can learn remote controls

14 Navigation
Using this application, you can enable/disable the “Eject” button of the “Navigation” system

15 Cruise control system
Using this application, you can activate/deactivate a cruise control system and change the related
steering wheel electronics( SWE) configuration if SWE unit is available

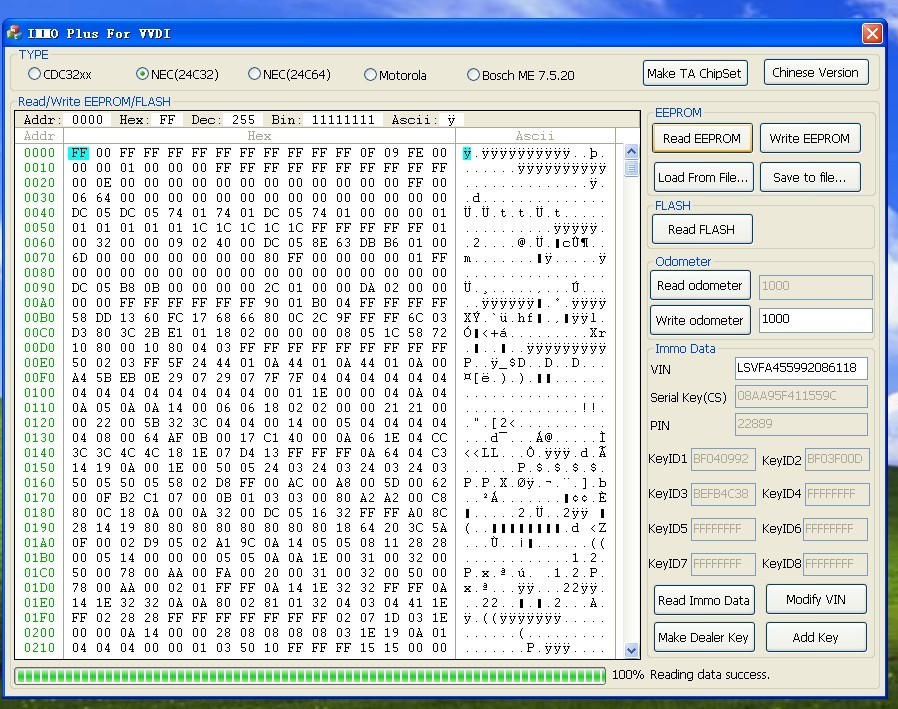

VAG Vehicle Diagnostic Interface VVDI Display:

Compare SMART ZED-BULL with ZED-BULL:SMART ZED-BULL has 30% faster advantage in reading and writing over than ZED-BULL which improves its success rate up to 99.99%, in this way Smart ZED-BULL will eliminate the waste of chips.It is a transponder cloning device which contains all of Zed-Qx's features and also has more additional features.

Smart Zed-Bull with Mini Type

No Token Needed!

Compare SMART ZED-BULL with ZED-BULL:SMART ZED-BULL gain 30% reading and writing speed.SMART ZED-BULL improve the success rate up to 99.99%, which will eliminate the waste of chip.(As we all know, some chip can be written only once)

Smart Zed-Bull Description:

1.New: support 8C and 8E chips distinguish function
2.Language: English, Turkish, Italian, Spanish and Portuguese
3.Zed-BULL will fulfill all of your requirements as professional on Immobilizer Systems;
4.Zed-BULL is a transponder cloning device which contains all of Zed-Qx's features and also has more additional features.

Smart Zed-Bull Main Feature of Zed-Bull:

1. Finding PIN Code, Preparing Precoded Transponders and Programming Transponders from EEPROM and MCU.
Zed-BULL PC software is excellent features will help you while using EEPROM applications. ECU pictures, which ECU has which MCU or EEPROM and the location of mcu or eeprom on the board, which type transponder will be used... These kind of information will ease your work. With Automatic Module Finding (AMF) feature, when you select the EEPROM file, the module will be recognized automatically
Another revolution of Zed-BULL is programming transponders when there is no key from ECUs. For now, Zed-BULL has 55 different applications and it is increasing... With this feature, you can program transponders, find pin codes and prepare precoded transponders for the cars which need precoded transponders like fiat doblo 48. For this feature, you don't need expensive precoded transponders priced about 8-10 Euro. You can use blank transponders.

2.Transponder Cloning:
11, 12, 13, 33, 73, 4C (writing to 4C electronic key and battery less TPX1 transponder), Philips Crypto 40 (some), 41(all), 42(all), 44(all unlocked VAG), 45(all)
Until now, common transponder cloning tools could only copy fixed transponders. But the revolution that we started with our device, Zed-Qx, is increasing with Zed-BULL. 41(NISSAN), 42(VAG), 44(Unlocked VAG) and 45(PEUGEOT) transponders which normally known as can not be copied, can be copied with Zed-BULL.

3. Producing Transponders for OBD Programming
If you have an OBD device like T-Code Pro, you will need special precoded transponders for some cars. Instead of buying these special transponders for high prices, you can produce them with Zed-BULL using blank transponders. And you don't need expensive precoded transponders priced about 8-10 Euro... The transponders that you can produce: 40, 41, 42, 44 Mitsubishi, 44 VAG, 45, 73 Mitsubishi, 61, 62, 65 and 46 for BMW, AUDI, PORSCHE, CHRYSLER, RENAULT... etc. For now, Zed-BULL has 24 different transponder production applications.

4. Hitag2 Transponder Programmer
If you want to buy a hitag2 programmer as standalone device, you have to pay around 1000-1500 Euro. But when you have Zed-BULL, you will get this hitag2 programmer feature for FREE. You can work on hitag2 transponders and improve yourself on your job.

5. Easy Use with Wide Graphic LCD Screen.
Wide screen of Zed-BULL will show you much more.... With Zed-Bull is wide screen, you can see more information like, VIN number and kilometer info for BMW cars, detailed information for 46 and 48 transponders ... etc.

6.Additional Function:
1) Reading kilometer, VIN number and key number information from original BMW key and writing to original BMW remote key
2) Finding PIN code from VIN number for HYUNDAI and KIA
3) PC software includes a wide-range transponder catalog, key fob procedures and more information
4) PIN code finding for 33 Renault and 45 Peugeot from transponder
5) Unlocking the 48(magic II) type locked transponder and make it re -usable
6) Saving transponder information into database including crypto transponders
7) 3 different device case color alternatives (red, black and white).

Smart Zed-Bull Package List:

1x Zed-bull main unit
1x PC USB cable
1x power Adapter
1x CD

Xtooltech X-vci can work with many original diagnostic softwares, and same function as the original tools.

X-VCI For Car

MANY TOOLS IN ONE

Xtool X-vci box not only support J2534 reprogramming, but it is also the device of OEM scan.J2534 is the har-dware standard for OEM scan.Toyota,Honda, Subaru,Mazda,Ford,Landrover,Jaguar,GM and more use J2534 standard for scan now.

PROTOCOL SUPPORT

RP1210A, RP1210B, and J2534 API support
Bluetooth vehicle-to-PC wireless connectivity
USB vehicle-to-PC connectivity
Protocol coverage for automotive to heavy duty vehicles:
CAN - J1939/CAN125/CAN250/CAN500/CAN1000
2nd CAN - J1939/CAN125/CAN250/CAN500/CAN1000
Automatic bit rate detection for both CAN channels
J1587/J1708
J1850
ISO 15765 (Diagnostic CAN)
ISO 14230 (KWP2000 over ISO9141)
J2534

Compatible Software

Support car and Orignial software, Can Replace Original VCI

MB Carsoft 7.4 Multiplexer

FVDI ABRITES Commander for Porsche(V4.1), if you buy this set, we will send you Hyundai, Kia and Tag key tool software for free.

FVDI ABRITES Commander For Porsche (V4.1)

Features:
1. Software Version: 4.1
2. Language: English Only
3. Buy Porsche software get Hyundai/Kia/Tag Key Tool software free

Porsche FVDI Description:

ABRITES Commander for Porsche is professional software for diagnostic of Porsche vehicles. It is capable to perform a diagnostic of any unit. It provides some unique functions, which are not supported by any other diagnostic tool.

Pictures Display as Follows:

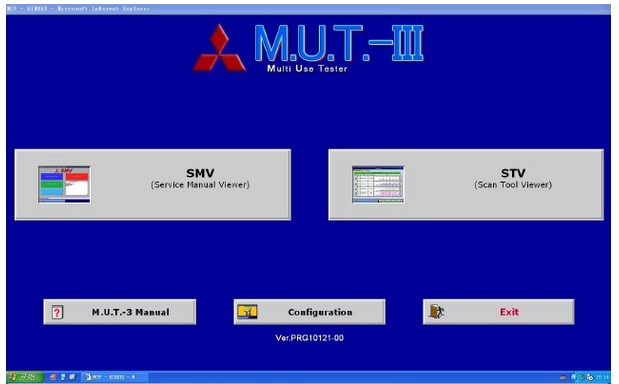

ABRITES Commander for Mitsubishi is a software intended for standard diagnostics and key programming for Mitsubishi vehicles.

Autel MaxiDAS� DS708 works with Asian, European and American cars. For Toyota, Honda, Nissan and Renault, its functions have reached their original tool funcitions. For Volvo and Mitsubishi year before 2005, it has reached original functions.

Autel MaxiDAS� DS708

Highlights:

2 Autel Maxidas DS708 English Supported European Car Models

3 Autel Maxidas DS708 English Supported Asian Car Models

Autel Maxidas DS708 Component Descriptions

GM Tech2 main unit is for sale now, if your gm tech2 multiplexer is bad, you can buy from us, you can choose the same multiplexer which you bought before, then you can use it normally with new gm tech2 main unit.

GM Tech2 Multiplexer GM Scanner Main Unit

When you try to buy the GM Tech2 Multiplexer, please choose the same Multiplexer which you brought before

Package List:

1pc * GM TECH2 Main Unit

Interface USB OBD2 for BMW - INPA/Ediabas - K+DCAN allows full diagnostic of BMW from 1998 to 2008 (all functiosn as in OMNITEC interface). Build in 2 lines K and D-Can magistral

Bmw Inpa K+CAN

Features

- Read and delete errors
- Adaptations
- Driver programming
- Applu coding
- And others...

Supports Protocols:

1. Fast magistral D-CAN and PT-CAN (500 kbit/s)
2. Slow magistral K-CAN (100 kbit/s)
3. Standard BMW protocol (BMW OBD interface).

D-CAN for:

- E60, E61 od 03/2007
- E83 od 09/2006
- E81, E87 od 03/2007
- E90, E91, E92, E93 od 03/2007
- E70 (new model X5)
- R56 (new model MINI)

PT-CAN, K-CAN - fully switchable speed of migistral CAN - ou can diagnose driver without any car

Protocol "BMW OBD Interface" for Older Cars:

from 1995 to 1998 (don't need K-line).
from 1998 to 03/2008 (all models)

HTS-III Automobile Diagnostic Scanner is newly developed PC based wireless diagnostic scanner. It’s a highly integrated product with automotive electronic technology application and information network technology.

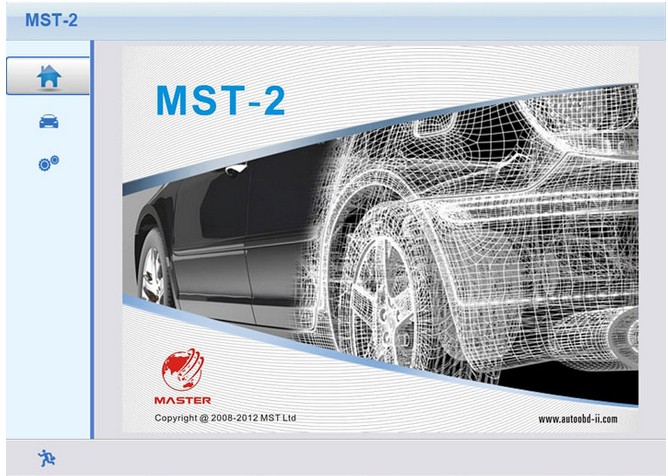

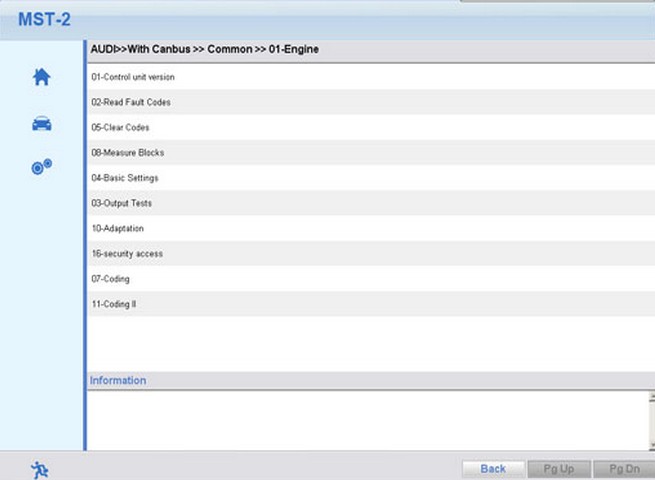

MST-2 Diagnostic Scan Tool is affordable, reliable device.

MST-2 Universal Diagnostic Scan Tool



Supported Language: Chinese/ English
Software Version: 2013.08.13

MST-2 Universal Description

Coverage for more than 50 makes
Access to powertrain, chassis, body systems
Actuations, adaptations, control module coding
Quick test functions to diagnose entire vehicle
Fault codes, data stream

MST-2 Universal Characters

1. Universal: The system works for European, Domestic, Asian, Korean, Japanese, Malaysian and Chinese vehicles.
2. Durable: Can be used in hot or cold weather, from -20�C to 50�C (-4 to 120�F).
3. Platform: Operates on either XP or Vista operating systems.
4. Interface: USB "plug-and-play" technology and high baud transceiver for faster data transfer.
5. Report: Results can be saved and printed for later reference.
6. Upgrading: Software can be upgraded anywhere via internet. New functions and features are added constantly to cover more vehicle models.
7. Hardware: Anti-shock rubber guards for stronger, more durable usage.
8. Flexible: Able to communicate with engine, transmission, airbag, anti-lock brake, anti-theft and body control modules in most vehicles.

MST-2 Universal Test Coverage & Functions

1.European cars: for BENZ/BENZ-Class, BMW, AUDI, VW, CITROEN, FIAT, OPEL, LAND ROVER, PEUGEOT, PORSCHE, RENAULT, VOLVO, SKODA
2.Japanese cars: for HONDA, MAZDA, MITSUBISHI, NISSAN, SUBARU, TOYOTA, Lexas
3. Korean cars: for DAWOO, HYUNDAI, KIA, SSANGYON
4. USA car: for GM, Chrysler

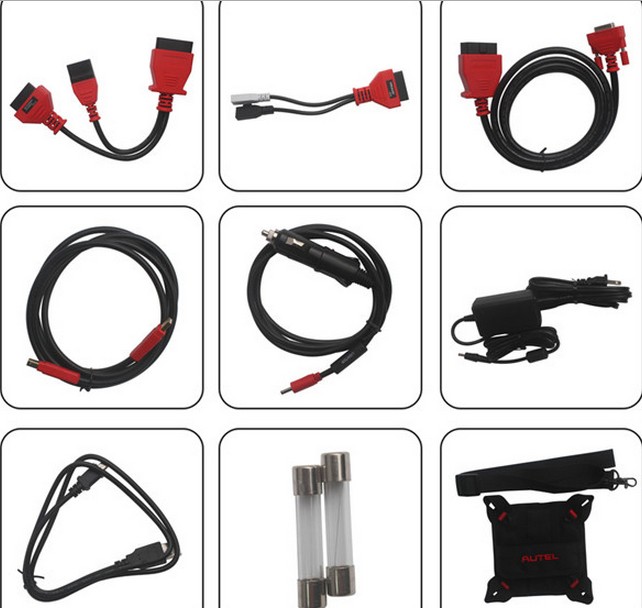

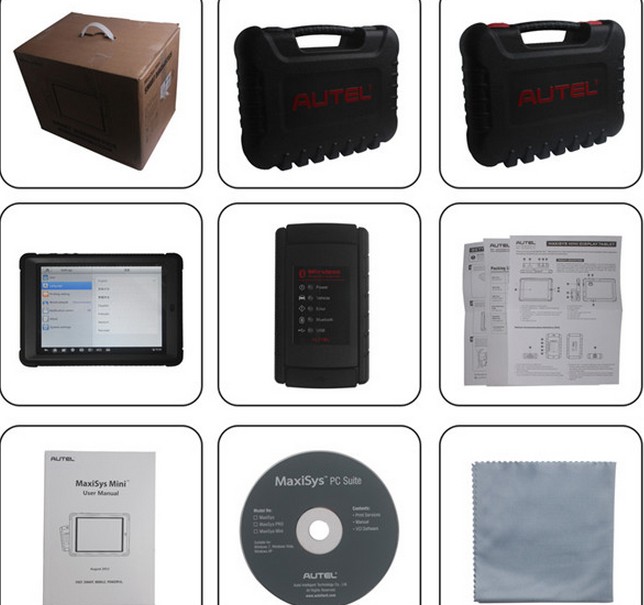

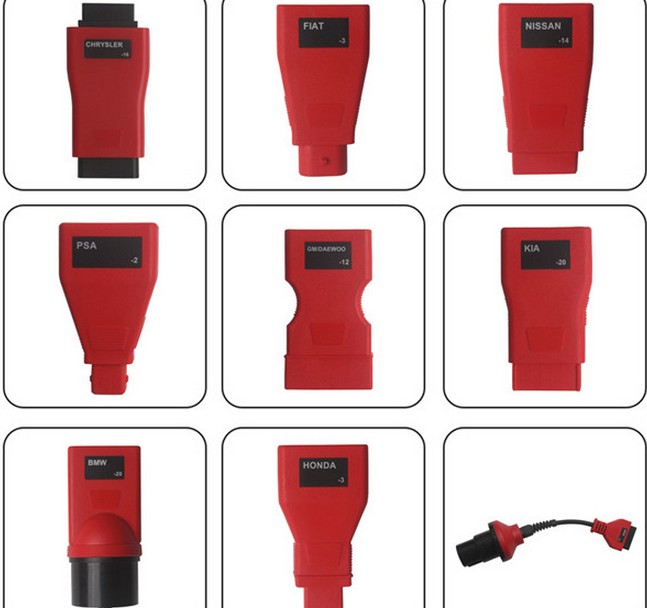

The MaxiSys Mini MS905 is the ideal solution to manage your repair jobs in one mobile and smarter wireless tool. MaxiSys Mini MS905 has been developed for customers looking for a tool with ultra mobility and modern design while still delivering ultimate performance.

The MaxiSYS� Pro has been designed to be the go-to tool for the professional technician who performs J-2534 reprogramming on a regular basis.

The ADS-TST is a compact, portable Trailer Socket Tester specifically designed for Mot Testing of all CAN-Bus and Standard 13 pin systems. The "Colour Co-ordinated" LED presentation clearly shows the Mot Test requirements as well as additional Non Mot Testing of +12v/24V Power and Reversing With many features required for the Workshop Environment the ADS-TST has a Die-Cast Aluminum Handset with durable Rubber Edging.

ADS TST Mot Testing Scanner For CAN-BUS and Standard 13 Pin System

Features:

Die-cast Aluminum casing
Self test facility
Durable edge protection
Optional 7-13 pin adaptor
Colorful co-ordindated LED’s

Specifications:

Power supply: DC12V/24V
Working temperature: -10 ~+70 degree centigrade
Weight: 1.6 kg
Color: red and black
Material: Aluminum

Package List:

1pc x ADS-TST interface
1pc x 13pin cable (5meters)

Xtool X-vci box not only support J2534 reprogramming, but it is also the device of OEM scan. This one is only for Porsche.

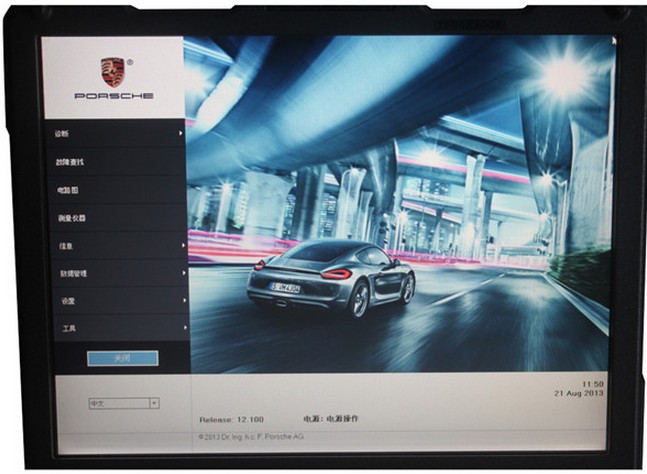

X-VCI Porsche Piwis 1

Xtool X-VCI box not only support J2534 reprogramming, but it is also the device of OEM scan. J2534 is the har-dware standard for OEM scan.Ford, Mazda, Landrover and Jaguar use J2534 standard for scan now.so Xtooltech X-vci can work with many original diagnostic softwares, and same function as the original tools.

X-VCI Prosche Piwis 1 Features:

1. Same functions as porsche kts520
2. Fucntion: Diagnosis + Programming + key copier
3. Car testing year: From 1996 to 2010
4. Software version: V29
5. Update: HDD update

Protocol Support:

RP1210A, RP1210B, and J2534 API support
Bluetooth vehicle-to-PC wireless connectivity
USB vehicle-to-PC connectivity
Protocol coverage for automotive to heavy duty vehicles:
CAN - J1939/CAN125/CAN250/CAN500/CAN1000
2nd CAN - J1939/CAN125/CAN250/CAN500/CAN1000
Automatic bit rate detection for both CAN channels
J1587/J1708
J1850
ISO 15765 (Diagnostic CAN)
ISO 14230 (KWP2000 over ISO9141)
J2534

Package List:

1pc x X-VCI Porshche piwis Main unit
1pc x OBDII 16Pin Adapter
1pc x Main Cable
1pc x USB Cable

SSS Programmer with HP Computer V32

SSS Programmer Description:

The SSSR3 is the new version of the Software Service Station .
It is an addition to the DISplus and Group Tester One (GT1)diagnostic systems.
Together with the Optical (test) and Programming System O(P)PS it provides an efficient and versatile platform for the programming, individualisation and encoding of BMW vehicles

SSS Programmer Available for Programming:

1 serial: E81 E87
3 serial: E36 E46 E90 E91 E92 E93
5 serial: E34 E39 E60 E61
6 serial: E63 E64
7 serial: E32 E38 E65
8 serial: E31
X serial: E53 E83 E70
Z serial: E52 E85 E86

BMW INPA V502 is a diagnostic tool which is mainly for BMW Vehicles.

BMW INPA V502

Supported Language: English, German

BMW INPA V502 Function:

1.Support of all ECU use cases in Engineering, Test, Production and After Sales
2.Specification of ECU's diagnostic data
3.Reading and clearing error memory
4.FLASH data uploading and downloading
5.Reading measurement value
6.Input/output control
7.Calibration of single ECU variables
8.Coding of ECU variables
9.CAN (controller Area Network) bus mode emulation
10.Integrated solutions for on-board/off-board
11.Fast and simple configuration of GUI and communication data instead of programming
12.Customer specific protocols supported
13.Long term application by supporting widespread ASAM standards

INPA Models Covered

1 series E87
3 series E30 E36 E46 E90
5 series E34 E39 E60 E61
6 series E63 E64
7 series E32 E38 E65 E66
8 series E31 E52
Mini R50 R52 R53
X series E53 E83
Rolls Royce
Z series E85 E52.

Notice of Using INPA

1)Before using this equipment, keep the battery of notebook fully charged to avoid battery broken. Don't charge the battery while diagnosing. Before charging, discharge the battery. You may knock down the battery and connect the power line during long time diagnosing. To make sure the battery life.
2)While testing, to make sure the diagnostic lines well connected.
3)Be sure to start diagnosing after all icons on bottom right of screen displayed regularly.
4)After finished diagnosing, back the screen to the main interface, then shut down the key and pull out the connector.
5)Don't cut the power or connector during test.
6)Don't touch the high temperature components in carriage during test.

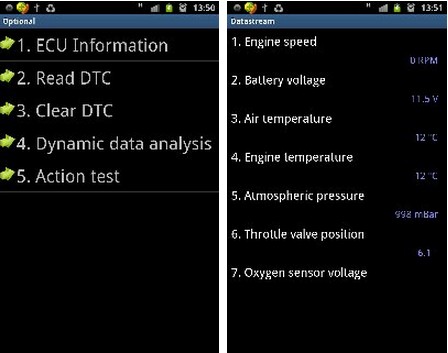

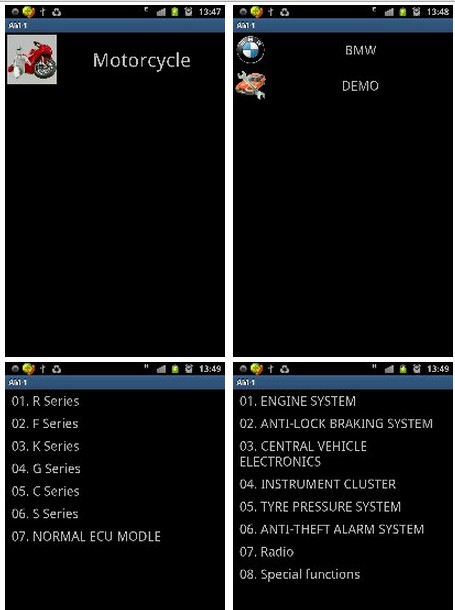

MOTO-BMW Motorcycle diagnostic scanner is a special purpose scanner aimed at motorcycles manufactured by BMW Company. It is used for the fault diagnosis of BMW motorcycle electronic control system.

MOTO-BMW Motorcycle-Specific Diagnostic Scanner

Feature:

1. It covers BMW C, F, G, H, K and R series vehicles.
2. It supports the test of engine, ABS, instrument, and body system of motorcycle.
3. Its main function including: reading PC version, reading fault codes, motorcycle fault codes, component test, and data stream analysis and adjustment, etc.
4. Supports on-line upgrading.

Technical Parameter:

Mainframe I/O: standard serial / parallel port
Mainframe power supply: DC12V
Mainframe power: about 9W
Display screen: large LCD with touch screen, with backlight
Ambient temperature: 0-50�C
Relative humidity: <90%

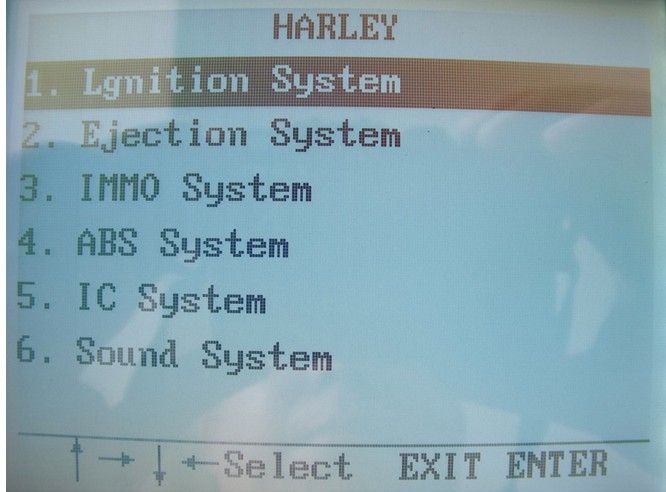

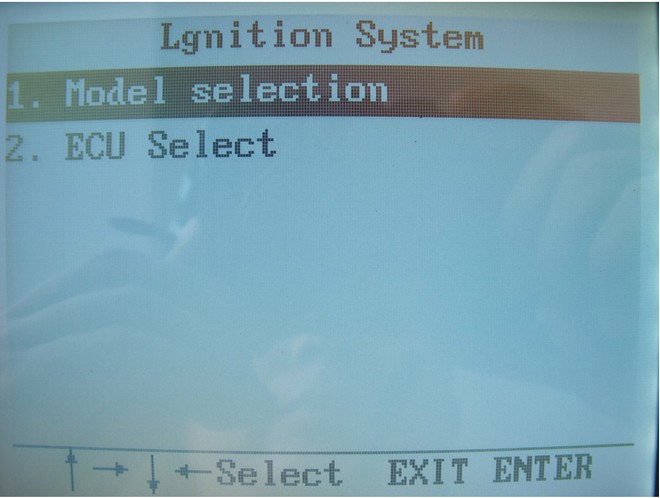

ADS MOTO-H Harley Motorcycle Diagnostic Tool Update Online
Language: English Only
It does not support Bluetooth

Multi-cardiag M8 CDP Pro 3 in 1 for Car and Trucks is a diagnostic tool used with a PC or Pocket PC and powerful CARS Diagnostic software, making it a powerful and flexible tool for all vehicle shops, fleet owners, vehicle testing, road service, police and armed forces.
Software: 2013.02

BMW ICOM Server ISIS+ISPS+ISID+ICOM is most poweful tool for BMW. It can do same function as original factory, support online programming. It is also very expensive and difficult to get. But absolutely it worth.

BMW ICOM Server ISIS+ISPS+ISID+ICOM

Software Version:
Same with 4S Shop
ISIS 3.0
ISPS 47.7.000
ISID 2.33.11
VinCode 2012-10-09

Update:

1. Small version update: Remote help to update online by factory engineer
2. Large version update: Need to change harddisk to update, and you need to pay for the update fees.
3. 2 year free service warranty.

Configuration:

ISIS+ISSS+ISID+ICOM
Because ISSS is Windows XP system, support only memory 3.2 maximally, so it usually encounters the problems which the computer is died or gives error when programming for the reason without enough memory.
But ISPS is programming Server, 3.0 iBase Vesrion, with I5 CPU and 8G memory. And ISPS uses Win2008 server system, can support 32 memory maximally. In the future, BMW will use ISPS to replace ISSS completely.

Package List:

2pcs * Server main unit
1pc * X220T I7 Lenovo laptop
1pc * Ruter
1pc * BMW ICOM

2013.02V Bluetooth Version Multi-Cardiag M8 CDP 3 in 1 is a diagnostic tool used with PC or Pocket PC and powerful diagnostic software, which make it a powerful and flexible tool for all vehicle shops, fleet owners, vehicle testing, road service, police and armed forces.

2013.02V Bluetooth Version Multi-cardiag M8 CDP 3 in 1

2013.02V New Design Bluetooth Version Multi-cardiag M8 CDP Plus for Cars/Trucks/OBD2 is a diagnostic tool used with a PC or Pocket PC and powerful diagnostic software, making it a powerful and flexible tool for all vehicle shops, fleet owners, vehicle testing, road service, police and armed forces.

New FVDI ABRITES Commander with 18 Softwares

New FVDI ABRITES Commander with 16 Softwares

18.FVDI ABRITES Commander for Bike, Snowmobiles and Water scooters

Volvo Serial Diagnostic Cable is PC based code reader and live data scan tool for Volvo cars including 800 Series, C70, S40, V40, S70, V70, 900 series, S90 and V90.

This high-performance tool covers up the new generation of instrument clusters from 2002. VAGdashCAN V5.29 can work for GolfV, Touran, Passat B6, Jetta, the new Seat models, such as Altea II and the new Skodas.

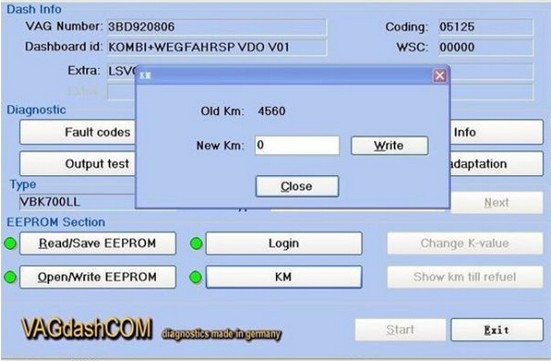

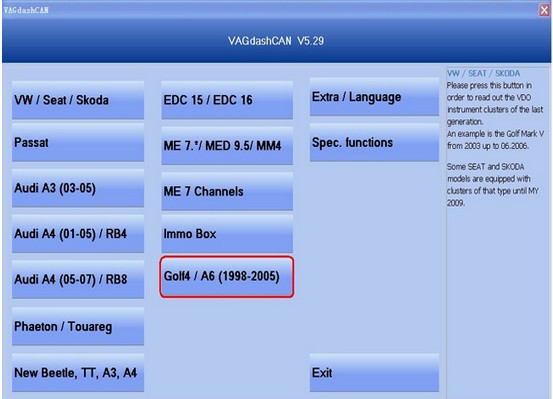

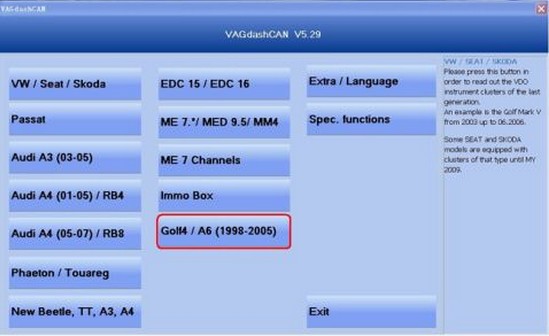

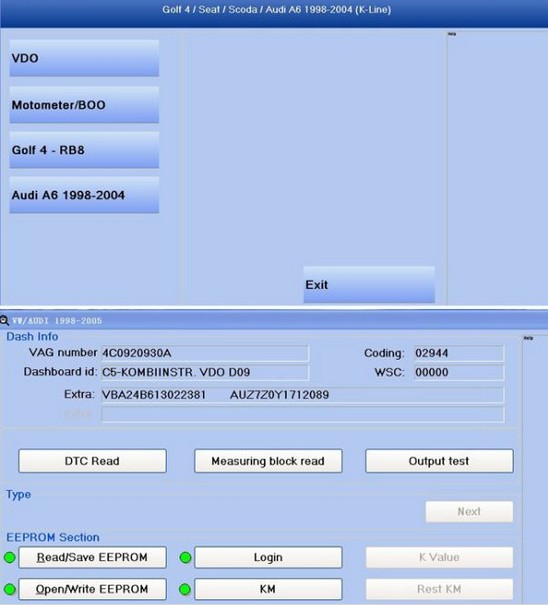

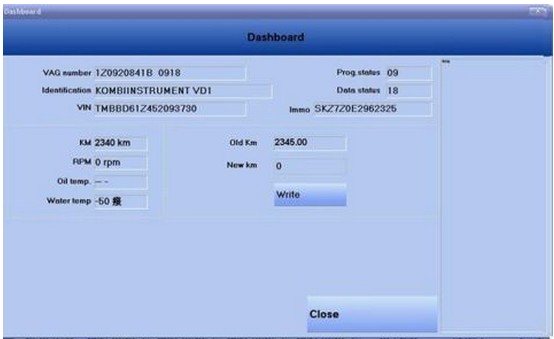

VAG DASH CAN V5.29

PHAETON/TOUAREG

ME7.* /MED 9.5

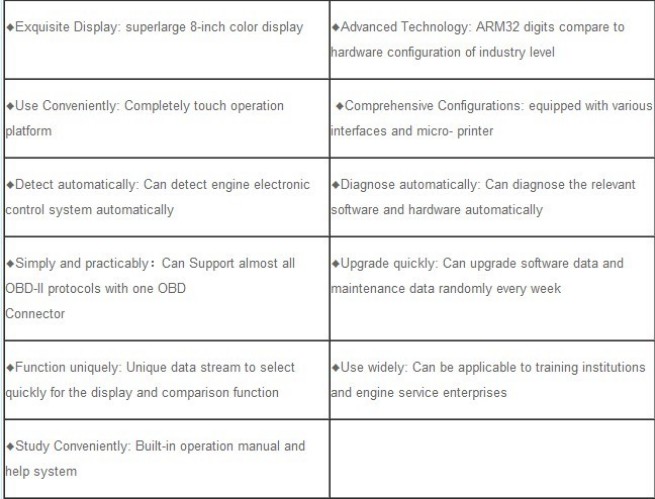

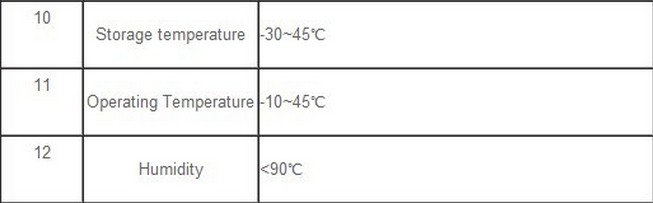

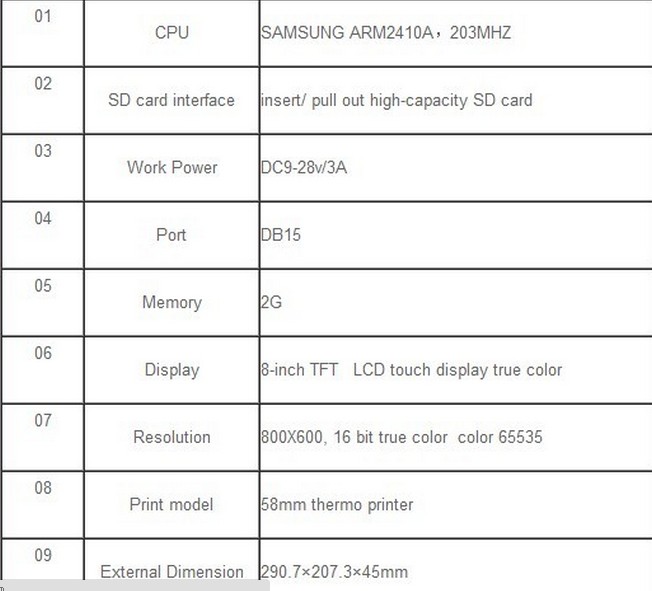

F3-W is the newest version of multi-functional intelligentzed automotive scanner which is specialized to design for the diagnosis of petrol engine electronic control systems by FCAR Company.

BMW OPPS works on vehicle models from the E65 on, BMW is for the first time using fibre-optic cables as standard for communication between control units.This product have a better quality than BMW OPS.Function almost the same.

BMW OPPS BMW Diagnostic Tool

Supported Languages:

SSS - German, French, Spanish, Italian, Netherland, Swedish, Japan, Chinese, Korean, Thai, Taiwan, Russian, Indonesian, Turkish, Greek, Portugese;
DIS - English/ Chinese

Please Attention This Machine Can Only Do Diagnose and Programming, Which is DIS and SSS. The Measure Menu in The Software Can Not Works.

Description:

On vehicle models from the E65 on, BMW is for the first time using fibre-optic cables as standard for communication between control units. The optical buses are notable for their high data transmission rate and they are not susceptible to electromagnetic interference. The optical buses in question are the MOST bus, primarily used for in-car entertainment electronics, and the byteflight bus, which serves predominantly safety-critical functions. OPPS has been designed for encoding, individualising and programming (CIP) via the Software Service Station (SSS) and envisaged for use as part of the BMW diagnostic system (DIS) from DISPlus and Group Tester One (GT1). It is intended for testing and programming tasks from the E65 series, taking the place of the diagnostic head. OPS is intended for rapid programming of control units. When operated at the SSS, no diagnostic or technical measuring pro-cedures are possible, as no measuring technology is incorporated; in this instance, OPPS / OPS is used predominantly for programming control units (flashing). Communication with the vehicle can be performed both via the MOST and via the OBD interface. The OBD interface is required for the power supply to the OPPS / OPS and has communication properties via which the vehicle can be identified and the data to be programmed can be determined. From CIP version 7.0, it is possible to delete fault code memories via OPPS / OPS.

Package List:

OPPS Head
16 Pin OBD Cable
LAN Cable (RJ45 / ODU Plug)
Fiber Cable

AM-Harley Motorcycle Diagnostic Tool (Android/win XP)
Language: English Only
Version: V1.2

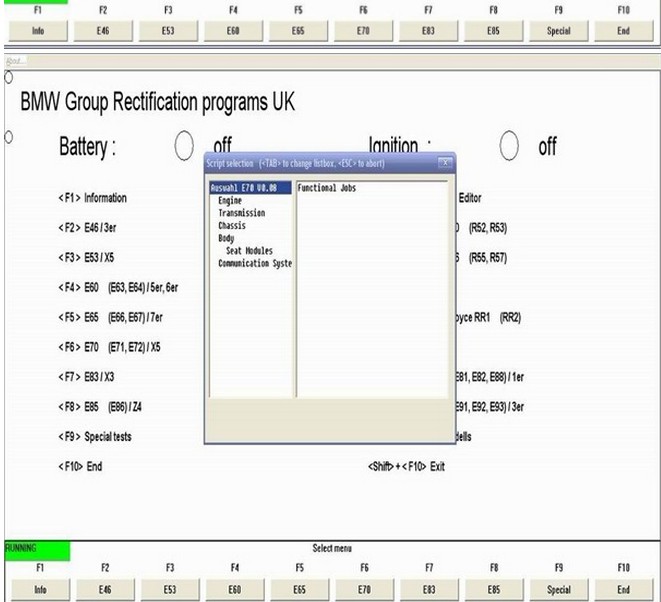

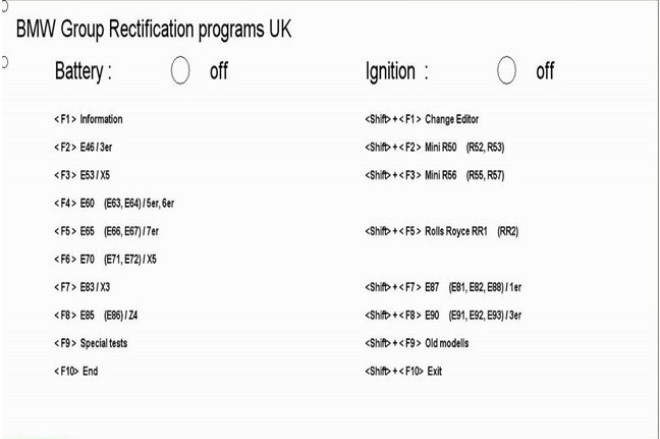

BMW INPA K+CAN is an OBD2 to USB interface for BMW cars.BMW INPA K+CAN allows full diagnose of BMW from 1998 to 2008 cars.BMW INPA K+CAN is built in 2 lines K and D-can magisterial.

BMW INPA K+CAN

Interface USB OBD2 for BMW - INPA/Ediabas - K+DCAN allows full diagnostic of BMW from 1998 to 2008 (all functions as in OMNITEC interface).
Build in 2 lines K and D-Can magisterial

Features

Read and delete errors
Adaptations
Driver programming
Applu coding
And others...

Supports Protocols

Fast magisterial D-CAN and PT-CAN (500 kbit/s)
Slow magisterial K-CAN (100 kbit/s)
Standard BMW protocol (BMW OBD interface).

D-CAN for

E60, E61 od 03/2007
E83 od 09/2006
E81, E87 od 03/2007
E90, E91, E92, E93 od 03/2007
E70 (new model X5)
R56 (new model MINI)

PT-CAN, K-CAN - fully switchable speed of magisterial CAN - you can diagnose driver without any car

Protocol "BMW OBD interface" for Older Cars

From 1995 to 1998 (don't need K-line).
From 1998 to 03/2008 (all models)

OBDII Protocol Detector & Break Out Box mainly used car OBD line signal judgment and signal transfer. Using car fault diagnosis instrument can quickly determine car OBD signal receiving. Signal may not meet angle can take other signal transfer angle. Application is very convenient and solve risks across the line.

OBDII Protocol Detector & Break Out Box

Product Characteristics:

1. In the process of using decoder, error can be found and diagnosed OBD connector link.
2. You can monitor the OBD interface voltage and ground, showed low voltage. Display diagnostic stitching error.
3. Jump for OBD interface signals. Signal lines such as decoder of 7 to 15 vehicles online.
4. Rapid detection of OBD2 diagnostic connector whether every stitch of the normal communication.
5. Replace the battery, save the car data function. When replace the battery, plug OBD2 connector into the car, at the same time connect additional power to the control box, so that ensure vehicle data is not lost.

This OBDII Protocol Detector & Break Out Box has wide range of applications in diagnostics, key programming and chip tuning:

- To monitor data steam while performing test on vehicle using a Scantool. This makes it possible for you to both execute a test and simultaneously monitor the testing process.
- Display testing voltage on the car or truck
- Display communicating pin number
- Is an extension of OBD Diagnostic Link Connector (DLC)

MB Star Compact C4 Main Unit

Professional interface for diagnostics Fiat / Alfa Romeo / Lancia USB Interface connected to a computer via the USB port, is also included OBD2 plug into the car.

Fiat Scanner

Description:

The Fiat Scanner is equipped with LEDs indicating TX and RX. The device is designed for each car owner and small and medium-sized garages. The device is professionally designed but very easy to use.

Supported Operating Systems:
1. Engine
2. ABS
3. AIRBAG

Support Car Models:

The CANDI module connects between the Tech 2 Flash’s diagnostic link cable and the OBD adapter. Once the CANDI module is connected, it can be used on all GM vehicle applications, even those vehicles using other platforms such as OBD I and OBD II.Includes the CAN diagnostic interface module and instruction sheet.

CANDI Interface for GM TECH2

Candi of GM Tech2 Description:

An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnosis on a vehicle that uses the CAN interface, you will need the Tech 2 Flash and a CAN diagnostic interface module.

Specification:

GM vehicles utilize the CAN interface list

05 Buick Allure (3.6L)
05 Buick LaCrosse (3.6L)
05 Buick Rainier (5.3L)
04-05 Buick Rendezvous (3.6L)
04-05 Cadillac CTS (3.6L)
04-05 Cadillac SRX (3.6L / 4.6L)
04-05 Cadillac XLR (4.6L)
05 Cadillac STS (3.6L / 4.6L)
05 Chevrolet Cobalt (2.2L)
05 Chevrolet Corvette (6.0L)
05 Chevrolet Equinox (3.4L)
05 Chevrolet TrailBlazer (5.3L)
05 Chevrolet SSR (6.0L)
04 Chevrolet Malibu (Body/Chassis only)
05 Chevrolet Malibu (3.5L)
05 GMC Envoy (5.3L)
05 Pontiac G6 (3.5L)
05 Pontiac GTO (6.0L)
05 Pontiac Pursuit (2.2L)
03-05 Saturn ION (2.2L)

Package List:

1pc x CANDI Cable

It applies the latest high-tech central gateway system of car model 221/211 and 203 with software version updated to 2013.03, can enter all the Benz cars, such as autobus truck, saloon car, sports car, smart car and so on.

Mb Star C3 Pro with Seven Cable without HDD

Notes:
1. This package only multiplexer and cables, no HDD.
2. Mb Star C3 has past truck test. It can used to do benz trucks.

MB Star C3 Functions:

1.1989~up to now Car, Bus, Truck, Sprint, Smart ;
2.All electric system Diagnostic;(Do not include flash code)
3.reading trouble code
4.erasing trouble code
5.live-data
6.adaptation
7.component testing
8.maintenance
9.information consultation
10.component location diagram
11.wiring diagram

MB Star C3 Features:

XP-STAR(Auto-Link Blue STAR) realizes all the functions of official factory BENZ Star2000: reading out and erasing trouble code; reading the real-time data of sensor and actuator; coding and programming.

MB Star C3 New Features:

1. This version of MB STAR C3 can fit all computers,it is not only limited on IBM T30,provide great convenience to customers.It has one hard disk contain DAS and WIS system.
2. With a 7 meter RS232-RS485 cable,provide more convenience to garage when diagnose.
3. Every hard disk has it's special number,have self-test function.Just give us the self-test report and the number,we will find out what's the matter with this tool,avoid the shipping charge when this tool need fix.Great improvement!
4. What is most important,this C3 has past truck test.It can used to do benz trucks.

MB Star C3 Testable System:

ENGINE
AUTO-SPEED
AIRCONDITIONAL SYSTEM
SRS
ABS
ASR
MPL
GM
BENZ ORIGINAL ANTI-THEFT
DASX SYSTEM
KEYZESS GO SYSTEM
OBD-II SYSTEM

MB Star C3 Package List:

1x MULTIPLEXER
1x 16pinOBD II cable
1x 4pin cable
1x 38 pin cable
1x 14pin track cable
1x COM cable
1x RS232 to RS485 Cable
1x Serial adapter cable

Super Volvo Dice Pro (Silver Color)
Software Version: 2013A

Best Price 2012D VOLVO VIDA DICE Diagnostic Tool

Best Price 2012D VOLVO VIDA DICE Diagnostic Tool

Software Version: 2012D
Languages: English, French, Spanish, Swedish, Portuguese

Volvo Vida Dice Description:

1.DICE - Diagnostic Communication Equipment, is a tool that is used together with VIDA all-in-one to communicate with the vehicle. Communication makes diagnosing and troubleshooting the vehicle possible, as well as downloading software.
2.DICE has an integrated CARB cable, which is connected to the vehicle's diagnostic socket. When connecting to the vehicle, DICE is powered as long as the battery is charged.
3.DICE has a folding hook that is designed for hanging the unit from one of the grab handles in the vehicle for example.
4.DICE is equipped with four status LEDs that indicate the status of the software, the USB and Bluetooth communication and the interface to the car.
5.At one end of the unit, there is a DC input where a battery cable or adaptor(12V) can be connected. The adaptor is used when upgrading and troubleshooting the DICE.
6.In the other end of the unit, there is a removable cover that could be removed by turning the screw on the cover.

Requirement on Computer:

1. It must be windows XP Professional SP3
2. It need to be Internet Explorer 8
3. Computer memory need over 3GRAM
4. C:// must have 40GB space
5. Software must install on C://
6. It must be NTFS format

Volvo Vida Dice Function:

1.Administration - General information, design and function
2.Standard components, service materials and consumables. General information (among other things, control modules, SRS, general safety) as well as 3.service and maintenance
4.Engine with mounting and equipment
5.Electrical system
6.Power transmission
7.Brakes
8.Suspension and steering
9.Springs, shock absorbers and wheels
10.Body and interior - among other things, diagnostics, design and function, repair and spare part information
11.Other - special vehicles, e.g., ambulances, police cars. Components that deviate from standard.

Volvo Vida DiceE Installation Tips:

1. Run the CD-ROM ,,Choose the languages:[EN-GB...], install it to list, till all installations finished ,then restart the computer.
2. After restarted, once the service icon(The bottom of the right corner) is available(VIDA Status: Running) , and choose the below cracked executing documents [VIDA2011D_patch.EXE], install it to list, then retart the computer.
User Name: admin

Volvo Vida Dice Package List:

1. DICE device with OBDII cable
2. USB A to MINI USB angled cable
3. DVD with VIDA 2011 English (activated)
4. Version we offer now: VIDA 2012D English (locally activated, no online services, login as "Info-pc")

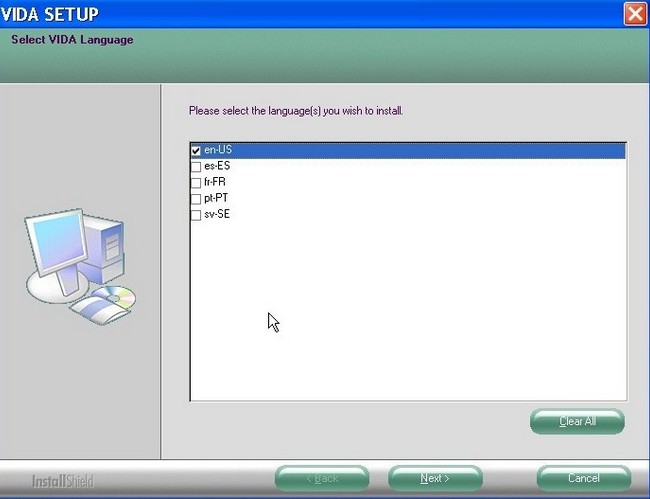

Volvo Vida Dice Language:

Multi-Cardiag CDP+ 2013.02 Version is a diagnostic tool used with a PC or Pocket PC and powerful CARS Diagnostic software, making it a powerful and flexible tool for all vehicle shops, fleet owners, vehicle testing, road service, police and armed forces.

Multi-Cardiag CDP+ 2013.02 Version is a diagnostic tool used with a PC or Pocket PC and powerful CARS Diagnostic software, making it a powerful and flexible tool for all vehicle shops, fleet owners, vehicle testing, road service, police and armed forces.

BMW scanner 1.36 is a upgraded version of the BMW-scanner for E38/E39/E46/E53 differs from the previous version (V1.25) ,such as the high-grade program module for work with ZKE (Body Control Module) Is added, support on updating run in IKE and LCM is added.

BMW Scanner1.36

Function:

The high-grade program module for work with ZKE (Body Control Module) Is added
Functions of adaptation second-hand blocks SRS MRS2-MRS4 (in V1.25 - only MRS4) Are added
Support of the diagnostic report of blocks DME of series ME7 Is added
Functions of installation of indications odometer (miles/km) and language of messages BK
(GE/EN/FR/IT) Are added
The base of support on updating run in IKE and LCM (LCM-4 up to 09.2004) Is added

Autoboss V30 Mini Printer

Package List:

1pc x Autoboss v30 mini printer

MaxiCheck Pro, based on Autel latest diagnostic platform, is simple, easy to use, and has been designed for professional technicians and body shops to service individual specialized systems.

Scan Diag Box Standard Kit ScanDiag can be used in about 100 serials of vehicles including thousands of kinds of models of ECU both home and abroard in fault diagnosis.

Scan Diag Box Standard Kit ScanDiag

Vehicle List:

Product Description:

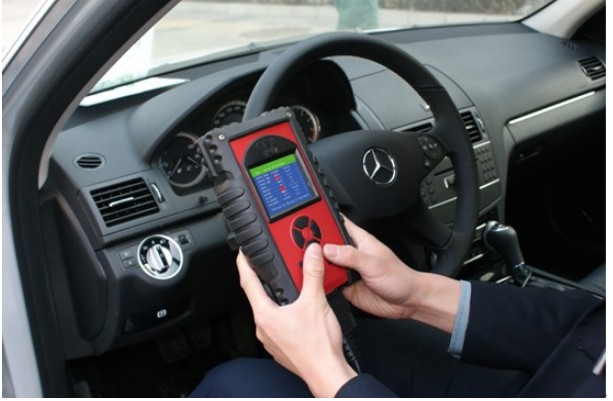

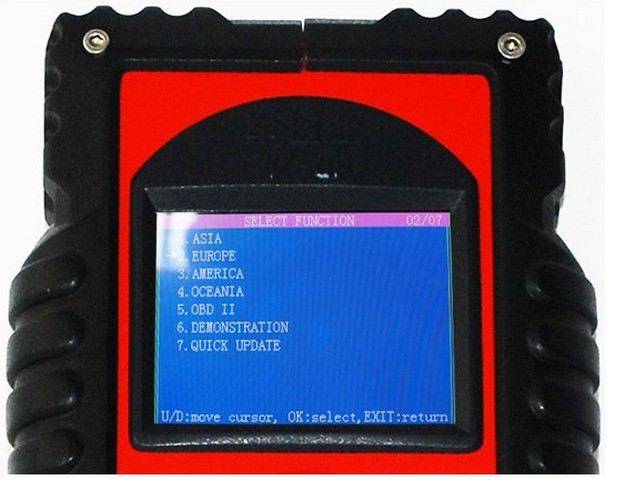

JBT-CS538C auto scanner could diagnose Asian, European and American cars without any limited. It also contains the strong diagnostic software of Asian cars, BMW, Mercedes. JBT-CS auto scanner is appointed to be the O.E auto scanner for VW, Audi, Mitsubishi, Nissan, Ssangyong, Toyota

Vehicle Scanner Auto Diagnostic Tool Scanner JBT-CS538C

No Printer

Basic Function:

Read DTC (Diagnostic Trouble code)
Clear DTC
Data-stream reading and storage
Actuation Test

JBT-CS series developed in the most new edition jinbenteng scanner development system BT-DDS platform New generation of BT-DDS developing platform integrates many new technology which causes the CS have many convenient formidable functions, had achieved anticipated design purpose of operation simple, function formidable.

Four Original Inventions:

Self-learn-judge-more
Data Stream Memory and Printing-more
Personnel Operation Setting-more
Over-Scope Alarm Display-more

Two Different Charateristics:

Value-Added
Intellengence

Features:

Myriad memory space of hardware can enable customers record world-wide vehicles data without changing memory card, and can ensure unlimited program updates.
Color Display and Friendly Interface. Each interface has real-time operational advice, which is easy to operate.
The formats of data streams can be set by users themselves to help them compare all types of vehicles parameters.
Referential DataStream normal ranges are provided to aid trouble shooting.
VGA Visual Output is able to connect bigger screen projection
Software and hardware designing has been considered with protection, which can enhance the stability of product.
Demonstration programs have been installed to help users learn.

AM-BMW Motorcycle Diagnostic Scanner works on Android system. You no longer need a laptop and desktop to access the diagnostic information, now you can do it from the comfort of your mobile phone, tablet PC.

AM-BMW Motorcycle Diagnostic Scanner

Language: English

Descriptions:

AM-BMW Bluetooth BMW motorcycle Scanner, It works on Android system. You no longer need a laptop and desktop to access the diagnostic information, now you can do it from the comfort of your mobile phone, tablet PC. Your Android device is now become a BMW motorcycle scanner. It also works on windows XP.

Specifications:

Work voltage: 12V
Ambient temperature:-20℃-40℃
Relative humidity: Less than 90%

Functions:

1. MOTO-BMW covers BMW C, F, G, H, K and R series.
2. Test engine, ABS, instrument, and body system of BMW motorcycle.
3. Reading ECU version, reading fault codes, component test, data stream analysis and adjustment, etc.
4. Support Dynamic data recording and playback
5. Online upgrade

Features:

1. support Android, Windows XP
2. Two diagnostic ways: Bluetooth and cable.
3. Online update.
4. One year free Software update.

Software Display:

ABRITES Commander For Mercedes-Benz/Smart/Maybach FVDI(V6.4), buy FVDI Benz, we will send Toyota, Lexus, Hyundai, Kia and Tag key tool software for free.

FVDI ABRITES Commander For Mercedes-Benz/Smart/Maybach

Highlights:

FVDI Mercedes Commander Standard Function

1. Read identification
2. Read extended identification
3. Read/Clear fault codes
4. Scanning for control units / Clearing fault codes in all control units
5. Display of Actual Values
6. Actuator Tests
7. Reset of control units
8. Control unit adaptations
9. Adjustment of injector injection quantities adaptation for Diesel Engines (CDI-4, CDI-5)

FVDI Mercedes Commander Special Function:

1. By OBDII - Comprehensive Mileage Recalibration for W221 and W216 vehicles. The mileage is changed in the following units: CGW, EZS, Instrument Cluster and all other units, which store the mileage (like Tire Pressure Monitor and Adaptive Brake, for example) , Read/Write service history records in ZGW of W221 S-Class and W216 CL, Read/Write complete EEPROM and Flash of CGW (Central gateway) of W221 S-Class and W216 CL, Mileage Recalibration in dashboard for Vito, Viano, Sprinter after 2006 year
E-Class W211, CLS W219, GL X164, ML W164, R-Class W251, CLK W209, C-Class W203 and G-Class W463
A-Class W169, B-Class W245
2. By OBDII - Mileage Recalibration for W204/W212/X204/W197/W207 vehicles. The mileage is changed in the following units: ASSYST, ASSYST Plus, EZS, Instrument Cluster
3. By OBDII - Read/Write EEPROM of Dashboard control units, ESP, Sensotronic Brake Control (SBC) and many others...Online manual for Sensotronic Brake Control Repair
4. By OBDII - Airbag - Read/Write EEPROM, Clear Crash Data, Erase Motohours
5. Dump Tool - calculate mileage values, reset mileage values, clear airbag crash data, make engine control virgin and so on
6. By OBDII - ECU - Read/Write Flash, Read/Write EEPROM of Engine Control Units
7. DAS-2 - Generation of key dumps for vehicles with DAS-2 Immobilizer system.
8. DAS-2a - Programming transponder keys for DAS 2a Immobilizer system (W168 A-Class).
9. By OBDII - DAS-2b - Key Learning for Mercedes W163; Read/Write EEPROM of AAM/EAM control modules; Learn radio code of transmitter keys; Deactivate/Reactivate keys
10. Transponder generation
11. By OBDII - TV/AUX activation/deactivation
12. By OBDII - Seatbelt warning activation/deactivation
13. By OBDII - Reverse warning activation/deactivation
14. By OBDII - Activation/deactivation of Speed warning for Gulf States
15. Electrical Steering Lock (ESL) - Read/Write/Unlock EEPROM of ESL for the following vehicles: W202, W208, W209, W210, W203, W211, W219 by direct connection to the ESL module.
16. Electrical Ignition Switch (EIS, K-Line) - Read EEPROM of EIS and ESL modules by diagnostic connection to the EIS module; Open/Close ESL
17. Electrical Steering Lock (ESL, CAN) - Disable/Enable keys; Write VIN of new units; Activate/Deactivate ESL; Activate/Deactivate EZS
18. By OBDII - Change ASSYST PLUS Service maintenance records
19. By OBDII - Change ASSYST Service maintenance records
20. By OBDII - Read/Write COMPLETELY EEPROM of Central Gateway (CGW) via OBDII. Works for the following vehicles : W211, W171, W219, W164, X164, W169, W245, W204, W212, X204, W218
21. By OBDII - SMART key teach-in (K-Line and CAN)
22. By OBDII - Renew of 7-Gear Electronic Transmission Control Unit (722.9) and ISM - Intelligent Selector Module

Software Display:

Multi-Cardiag M8 CDP Plus 3 in 1 for Car and Trucks Black is a diagnostic tool used with a PC or Pocket PC and powerful CARS Diagnostic software, making it a powerful and flexible tool for all vehicle shops, fleet owners, vehicle testing, road service, police and armed forces.

Multi-Cardiag M8 CDP Plus 3 in 1 for Car and Trucks Black 2013.02V (Without Bluetooth)

Software Version: 2013.02
Supported Languages:
English, Spanish, French, Italian, Portuguese, Czech, Dansk, German,Turkish, Greek, Dutch, Hungarian, Norwegian, Polish, Romanian, Russian, Serbian, Swedish, Finnish, Suomi

Introduction:

Multi-cardiag M8 CDP Plus 3 in 1 is a quick and reliable diagnostic tool serving as a link between vehicle and computer. It works on both old and new vehicles.
With CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands. With TRUCKS software package, you are able to perform brand specific diagnostics for light and heavy commercial vehicles, buses and trailers from 1995 onwards.
A total of 37 different brands. The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for emission related fault codes. GENERIC is included in CARS and TRUCKS packages.
Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), RS485 (J1708), TTL and (SPI, analog in, 5volt out).

Functions:

Flight Recorder With the flight recorder function, you can record parameters in real time while you are driving a vehicle. During recording, you can, with a press of a button, highlight the specific error so that you can investigate the detected error at a later time.Multi-cardiag M8 is equipped with built-in memory thus removing the need to bring a computer. Memory cart not include in package .

Multi Color Indicator With the multi colour indicator on Multi-cardiag M8, you have full control of the diagnostic process. Different colors and sound communicates the status and the placement of the indicator allows you to see it from a far. For example, if the indicator alternates between blue and green the Multi-cardiag M8 is in communication with the vehicle control unit.

Connector with LED To locate the diagnostic connector in the vehicle with ease, even if it’s located in a dark and inaccessible place, there is a LED on the 16-pin connector to help you along. The location and the design allows the light to function even when using the adaptor cable for vehicles without a 16-pin diagnostic socket.

Voltage Check When Multi-cardiag M8 is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehicle’s voltage level of 12 or 24 volts. If the voltage gets too high or too low, Multi-cardiag M8 will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.

Chassis Number Vin In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.

ISS Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyse the results further on.

ISI Intelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.

Report Function Under this function tab, you will be able to see the adaptations and adjustments that are possible for a specific vehicle without having the vehicle near you. Together with the help texts as a guide, you can plan and be effective in your work; even under complex situations.

OBD-Functions Multi-cardiag M8 is equipped with an unique multiplexer technology, which allows it to be used on all types of vehicles, regardless of voltage levels and communication standards. For those vehicles that do not use the standard 16-pin connector, we offer a complete set of certified and customized adapter cables and kits.

Help Function For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform.

Package List:

1pc x Multi-cardiag M8 grey interface
1pc x LED OBD2 Connector
1pc x USB Cable( 3 Meters)
1pc x CD 2013.02V

ABRITES Commander for Renault is professional software mainly for programming the new key/card of Renault Vehicles.NO NEED FROM A PIN CODE
Software version: 5.4

FVDI ABRITES Commander For Renault

Related Picture:

AllScanner VCX SUBARU SSM-III interface is designed according to the automotive industrial standard of Europe and USA, so it can be compliant with more diagnostic applications of OEM and the third party. Until now, AllScanner has been compatible with original softwares of most of cars. Supporting the functions of original tools can supplied.

ALLSCANNER Subaru SSM-III SSM3

Compatible Software: SUBARU SSM-III

Allscanner VCX Interface Feature:

1. Fully compatible with SAE-J2534
2. Special dual cell processor for automotive, full compliant with all vehicles protocols.
3. Self-determination design for adapters and cables
4. Compliant with 12V and 24V communications.
5. Fireware update available
6. CE and FCC compliance for hardware

Specifications for AllScanner Software:

AllScanner with SUBARU SSM-III
SUBARU SM3 software version: 3.2010; Updated available in future
Year covered: 1999 to now
Car covered: SUBARU
Languages supported: English, French, German, Spanish and Japanese
Operation environment: Windows XPⅠ& Windows XPⅡ

Features and Funtions:

1. All System Diagnosis. Selecting this item displays on a single screen the fault detect status of all control system control modules for which SSMΙΙΙ diagnosis is supported, and memorized diagnostic codes.
2. Each System Check. Selecting this item makes it possible to select a particular system from among the control systems forwhich SSMΙΙΙ diagnosis is supported, and perform fault diagnosis. This item can be used to view input/output data of the system control modules that perform fault diagnosis, memorized diagnostic codes, and other data on the PC display. This menu item is also used after repair work is complete to delete diagnostic codes, to configure control module settings, etc.
3. Saved Data Display. This item can be used to save various data sampled during fault diagnosis operations, and to load data for viewing after work is complete.
4. Immobilizer. This item performs immobilizer registration.
5. Reprogram. This item performs reprogramming of the control module.
6. Read CF application measurement data. This item performs reading stand alone measurement data saved in a CF card to hard disk of your PC.
7. Convert/Save measurement data on driving recorder. Loads data sampled on the driving recorder to the PC from the CF card, and converts and saves that data.
8. Oscilloscope. After attaching the optional pulse/analog cartridge to SDI, connect the pulse/analog box to the SDI and using pulse/analog probe to perform analog sampling.

Standard Package:

AllScanner Subaru package without wireless

Package List:

VCX main interface 1pc
OBD2 diagnostic cable 1pc
USB communication cable 1pc
VCX driver installation Disc 1pc
Original sofware installation Disc 1pc
Allscanner carry case 1pc

New Super GM Mini MDI is the only full function diagnostic and reprogramming tool capable of servicing new Delta and Epsilon vehicles (with auxiliary CAN bus that cannot be serviced by Tech2).GM MDI diagnostic software upgrades are planned for release later this year for additional new 2009 and 2010 models.

New Super GM Mini MDI

Specification:

1.The GM Mini MDI is initially being introduced with Pass-Through programming capabilities only. It can be used to perform Pass-Thru programming on all vehicles built since 1993 and will support all vehicles into the future.
2.The GM Mini MDI will be required to perform diagnostics on selected NAO vehicles for model year 2009. Diagnostic software is scheduled to be released for the GM Mini MDI during the fourth quarter of 2008.When diagnostics are introduced, the MDI will also get a remote data record capability. This permits recording data during a road test, similar to the Tech 2 snap shot function. A trigger switch connector is provided for this purpose.
3. Regulations require programming procedures to be compliant with SAE Recommended Practice J2534. The GM SPS is com-pliant with SAE Recommended Practice J2534, and the GM Mini MDI is compliant with the portions of SAE J2534 that are applicable for GM vehicles.

Software Display:

Super GM Mini MDI Supported Car Model:

Package List:

1pc x GM MDI Mini Interface
1pc x USB cable
1pc x Ethernet cable
1pc x Owner’s manual CD
1pc x Suite Case

FAQ:

Q:What is good of MDI?
A:1)MDI: Increase reprogramming speed 20-70% and get ready to service new models
For pass-through programming of electronic control units on all vehicles built since 1996 and future model releases. The MDI is between 20% and 70% faster than Tech.Also remember the MDI allows a single technician to wirelessly view multiple MDIS from a single PC. This means a technician is no longer tied to the constraints of cable access points within a service bay-further increasing productivity and profitability.

2)the MDI is a valuable addition to your toolbox that will improve your profitability.
KEY POINT:The MDI is the exclusive tool for servicing future vehicles-we encourage you to purchase at least one MDI as soon as possible so you are ready to service new models.
MDI is the only full-spectrum diagnostic and reprogramming tool capable of servicing new Delta and Epsilon vehicles (with auxiliary CAN bus that cannot be serviced by Tech2).

New Porsche PIWIS Cable functions Reset service reminders, Reads diagnostic trouble codes, Displays actual values, Shows ECU information, Clears diagnostic trouble codes, Turns off check engine light, Turns off airbag light

Porsche PIWIS Cable

Our Porsche PIWIS cable communicates with your car just like the factory tool does, and can access all of the systems in the car. OBD2 was created for emissions related problems and only covers a limited subset of your car engine.

Porsche PIWIS Cable Supported Vechiles:

1990-1992 Porsche 944S2
1992-1995 Porsche 968
1990-1994 Porsche 911 (964)
1994-1998 Porsche 911 (993)
1996-1998 Porsche 911 Turbo (993)
1998-2004 Porsche 911 Carrera (996)
1998-2004 Porsche 911 Carrera 4 (996)
2000-2005 Porsche 911 Turbo (996)
2000-2005 Porsche 911 GT2, GT3 (996)
2005-2007 Porsche 911 (997)
1997-2004 Porsche Boxster (986)
2000-2004 Porsche Boxster S (986)
2005-2007 Porsche Boxster (987)
2003-2006 Porsche Cayenne (955)
2005-2007 Porsche Cayman (987)

Porsche PIWIS Cable Functions:

Reset service reminders
Reads diagnostic trouble codes
Displays actual values
Shows ECU information
Clears diagnostic trouble codes
Turns off check engine light
Turns off airbag light

Porsche PIWIS Cable Work on Following Systems:

DME
Airbag
ABS
Tiptronic
Alarm
Seat Memory
Heating & A/C
And more...

FVDI ABRITES Commander for FORD is a software for diagnostic of FORD vehicles over CAN bus. It provide abilities for Incode calculations, key programming and mileage recalibration.

Compare to other low price scan tool, all the functions that Carman Scan II provides to the mechanics up dated information with OBD-1 level diagnosis functions.

FLY 100 H-onda scanner full version can do diagnose and key programming at same time.It can only do H-onda cars,compared with FLY100 locksmith version.It Supports H-onda & Acura car from 1992 to 2011 year.

FLY100 H-onda Scanner Full Version

H-onda Functions:

1.DTC reading and clearing (allows the user to read both permanent and temporary DTCs. Once the fault causing the DTC has been found and repaired the DTC tool can
then be used to clear DTCs.)
2.Snapshot function (capture data relative to a trigger event)
3.Vehicle data display (value, line graph, or bar graph formats)
4.DLC locator diagrams
5.Data list display (real-time display of ECU parameters)
6.System Functional Tests (allows for more detailed testing of specific parts of the vehicle systems, "where the ECU"support these tests (e.g. Window movement,
Lighting, Vehicle Gauges and engine components))
7.Onboard tutorial
8.Immobiliser
9.Odometer Rewrite

Special Function:

It can do smart keys. No need to input password. The machine automatically calculate the password and enter the IMMO system.

Specification:

1.Hardware and Software Requirements:

1) PC or laptop with either Windows 2000 Professional (SP4 or later) or XP (SP1 or later)
2) Hard disk drive with at least 400MB of free space
3) CD-ROM drive (if a high-speed Internet connection is not available)
4) RS232 port required to connect PC to IDT
5) Monitor capable of displaying in VGA mode or above (1024 x 768 recommended)
6) Use for the following cars: All H-onda model(H-onda & Acura from 1992 to 2008)

2.H-onda Electronic Control System:

1) Engine System
2) Theft Guard System
3) No key enter system, support serial and USB.
4) Antiblock system
5) Safty airbag system
6) Electronic air throttle system
7) Electronic booster system
8) Body electric system
9) Four-wheel turning system
10) ATTS
11) IMA
12) VTM-4
13) TPMS

Package List:

1x FLY100 full version main unit
1x OBD2 cable
1x USB Cable
1x 3pin Cable
1xCD

FAQ
Q:Can this product make Honda?
A:Yes,it can ,but we suggest using it on cars before 2010.

Multi-cardiag M8 CDP+ is a diagnostic tool used with a PC or Pocket PC and powerful CARS Diagnostic software, making it a powerful and flexible tool for all vehicle shops, fleet owners, vehicle testing, road service, police and armed forces.

T4 Mobile Plus diagnostic system for Land Rovers is a truly portable diagnostic tool, designed to compliment and expand the functionality and versatility of the T4 Diagnostic System.

T4 Mobile Roger Portable Diagnostic Tool

Language: English Only

Description:

T4 Mobile Plus with its Intelligent Connection System (ICS), the tool supports all J1962 supported MG Rover vehicles at the push of a button --gone are the days of swapping diagnostic cables!

Utilizing the latest PC technology,T4 Mobile Plus has been designed with portability and ease of use foremost. T4 Mobile Plus has been specifically optimised for use as a "Road Test" tool using standard T4 diagnostic software. T4 Mobile Plus has been designed as a fully expandable diagnostic tool, which will support full integration with the expanding T4 Product Platform.

Function:

1.Portability for road testing (subject to taking necessary precautions. T4 mobile + should only be controlled by a passenger for road testing)
2.Use as a mobile diagnostic and "Road Test" Tool
3.Cable switching at the press of a button offering reduced service times and costs
4.Fully compatible with T4 Product Platform - will integrate with T4 EAM, T4 Wheel Alignment, RAVE, etc
5.Utilizes current standard diagnostic software (DJR, DRM, DRE)
6.Supports all 96MY onwards J1962 diagnostic
7.User configurable printer supports all Windows XP listed printers
8.Includes 12 months full Technical Support and Maintenance Program
9.The ICS will support new vehicles via simple user controlled software updates
10.Comprehensive accessories available to tailor the product to your specific needs

Specification:

1.Intelligent Connector System:
EOBD/OBD II Vehicle interface compatibility
ISO9141
CAN
J1850 PWM/VPW

2.T4 protocol handling for legacy support to the following cables:
DTC0061
DTC0062
DTC0063
DTC0064
DTC0065
DTC0064 + DTC0057 adaptor
Full J2534 host and interface compatibility
USB version 1.1 host communication
Operates from Vehicle supply - range 8-16Volt
User configurable to support future communication protocols

Carlist Screen Display

In accordance with releasing new products that introduce CAN communications systems, MMC has developed the MUT-III as a next generation diagnosis tester for servicing these new and future vehicles.

Mitsubishi MUT-3 Diagnostic Tool

Newest Version: 2010
Support Languages: English, French, Spainsh, Thai, Vietnamese, Chinese
Attention: if you need do ECU programming function, you need have ECU program CDs. This we can not provide.

MUT-3 Description:

A personal computer (PC) is connected to the MUTIII unit and used as a system's control terminal, and communicates with a vehicle ECU through the VCI. In addition to being able to handle all diagnosis functions covered by the conventional MUT-II tester, the MUT-III system can display data as easy-to-understand diagrams and graphs on a large screen of the PC. Unlike the MUT-II, the MUT-III can retain data on all vehicles, from old to new models, classified according to destination in the PC's hard disk. This eliminates the awkward but essential job with the MUT-II, of switching the data list (communications protocol data and diagnosis item list database) by replacing the ROM pack with another according to the vehicle model and year model.

MUT-3 Function:

New functions that make use of the advantages of the PC are also being developed. For example, the workshop manual viewer is a useful function for mechanics as they no longer have to carry around a thick manual and search for relevant pages while working on a vehicle. The workshop manual viewer is currently available for certain vehicle models, and allows users to retrieve the pages containing the failure code for a particular problem at the push of a button.

MUT-3 Specification:

1.Set Includes

(1)Vehicle Communication Interface (V.C.I.) (MB991824)
A communication interface used to connect the vehicle ECUs and the PC.

When connected with the PC
-Vehicle diagnosis (Interactive fault diagnosis)
-SWS communication; CAN communication support
-Drive recorder
-Volt, Ohm, measurement
-Fuel pressure measurement (Not available in US)

When used with the V.C.I.unit (disconnected from PC)
-V.C.I. Stand-alone diagnosis
-Drive recorder
-ECU reprogramming
-Volt,Ohm measurement
-Belt Tension measurement

(2) MUT-III Main Harness A (MB991910)
Used when connecting the V.C.I. with vehicles that have only one 16-pin diagnosis connector.
-Supports fault diagnosis and ECU updating on the above-described vehicles
-Supports the CAN communication system

(3) MUT-III Main Harness B (MB991911)
Used when connecting V.C.I. with vehicles that have a16-pin + 12-pin or 16-pin + 13-pin diagnosis connector.
For models equipped with only 12-pin (or 12-pin + 12-pin)diagnosis connector, connect the M.U.T.-II adapter harness(MB991498) to the end of this harness in the same as MUT-II, and power is supplied from the cigarette lighter socket.

CF-16 Vehicle Communication Interface is a PC based OBD2 diagnostic machine. It supports 5 types OBD2 protocol in 9 modes. It also supports High speed and low speed CAN BUS. It supports IMMO, idle speed and service set for some special brands and models.

ADS CF-16 Vehicle Communication Interface

Feature:

1. Support OBD-II and CANBUS protocol.
2. PC based and software update on line.
3. Covered Asian, European and American cars.
4. Three years free update.
5. Live data recording and playing back function.

Specification:

Work voltage: 12V
Power: 5W
Ambient Temperature: -20℃-40℃
Relative Humidity: ≤ 90%
Material: Aluminum

Software Operating Picture:

AUTEL MaxiSys MS908 has evolved far beyond the original capabilities of DS708. It can be updated Online. the MaxiSys is the perfect diagnostic solution for shops and technicians who demand unrivalled smart technology and smart repairs.

FVDI ABRITES Commander for Peugeot Citroen(V6.3), if you buy this set, we will send you Hyundai, Kia and Tag key tool software for free.

FVDI ABRITES Commander for Peugeot Citroen

FVDI ABRITES Commander For Opel and Vauxhall

Highlights:

BMW INPA + 140+2.01+2.10 4 in 1 Scanner Diagnostic Interface support diagnose all systems of BMW series and OBDII diagnostic system.

BMW INPA + 140+2.01+2.10 4 in 1 Scanner Diagnostic Interface

BMW INPA K+CAN

Supported Protocols

1.High-speed D-CAN and PT-CAN (500 kbit/s)
2.Low-speed K-CAN (100 kbit/s)
3.Standard BMW ports (BMW-OBD-interface)

Functions

1.Reading and erasing codes.
2.Live data
3.Component testing
4.Computer programming
5.Adaptation and diagnosing
6.Maintenance procedure explaining
7.Integration of maintenance information
8.Auto-coding and programming of engine, gearbox, airbag, light control computer, engine anti-theft computer etc.
9.Testing some data (i.e. pressure, resistance and current) through the connection with cars. (Optional accessories is needed)

Supported Models

1 Series: E81/E82/E87/E88
3 Series: E30/E36/E46/E90/E91/E92/E93
5 Series: E28/E34/E39/E60/E61
6 Series: E24/E63/E64
7 Series: E23/E32/E38/E65
8 Series: E31
X Series: X3-E83, X5-E53, X5-E70, X5-E71
Z Series: Z1-E30, Z3-E36, Z4-E85/E86, Z5-E52
MINI Series: MINI-R50/R52/R53/R55/R56/R57

Supported Systems

All systems of BMW series and OBD-II diagnostic system, including:

(1)Engine System
Auto Transmission
SRS
ABS
(2)Cruise System
(3)Air-Condition System
EWS
LKE
BUS etc.

BMW Scanner 1.4.0

Short Functions List:

Determination of chassis, model, engine, gearbox and complete set

Searching of all units and reading:

Identification data
Odometer value
VIN and ADFG
Programming info (UIF)
Errors (DTC)

Reading and Saving in Files:

Program memory
EEPROM
Coding data
Amount of DTCs and DTCs shadow-memory
Live data
Programming info (User Info Fields)
"Unlocked" functions to show possibilities of full version:
DTCs description in DME MS43.0, EWS3, SRS MRS4
Clearing DTCs in same units
EWS-DME synchronization code in DME MS43.0
Live data in DME MS43.0, EWS3, SRS MRS2 and MRS4
Status of all keys in EWS3
EWS3 coding data interpretation
Equipment correction in SRS MRS4

BMW DASH V2.0

BMW DASH E6x V2.0 is intended to work with BMW 1, 3, 5, 6 and 7 series in "new" chassis.
For chassis E60/E61(5') E63/E64(6') E65/E66(7') E87(1') E90/E91(3')

Features:

Connecting with all electronic control modules in the vehicle.
For all electronic control units reading identification data, sw/hw versions, user information fields.
For all electronic control units read and clear error (DTCs) memories - standart, shadow, history memory.
Possibility to read/program memory of electronic control units (including CAS modules).
Synchronization DME/DDE and CAS.

BMW DASH V2.10

Supported Models

1 Series: E81/E82/E87/E88
3 Series: E30/E36/E46/E90/E91/E92/E93
5 Series: E28/E34/E39/E60/E61
6 Series: E24/E63/E64
7 Series: E23/E32/E38/E65
8 Series: E31
X Series: X3-E83, X5-E53, X5-E70, X5-E71
Z Series: Z1-E30, Z3-E36, Z4-E85/E86, Z5-E52
MINI Series: MINI-R50/R52/R53/R55/R56/R57

Supported Systems

All systems of BMW series and OBD-II diagnostic system, including:

(1)Engine System
Auto Transmission
SRS
ABS
Cruise system

(2)Air-Condition System
EWS
LKE
BUS etc.

Package List:

1pc x BMW INPA + 140+2.01+2.10 Diagnostic Interface
1pc x USB Cable
1pc x BMW 20PIN Cable
1pc x DB9PIN to OBD2 Cable
1pc x CD Driver

BMW OPS working on cars with optical fiber,both diagnose and programming for BMW cars.It works with models from E65 on.DIS version for T30 is V57,SSS is V41.

BMW OPS Diagnose and Coding Tool Fit for IBM T30

Description:

On vehicle models from the E65 on, BMW is for the first time using fibre-optic cables as standard for communication between control units.
The optical buses are notable for their high data transmission rate and they are not susceptible to electromagnetic interference. The optical buses in question are the MOST bus, primarily used for in-car entertainment electronics, and the byteflight bus, which serves predominantly safety-critical functions.
OPPS has been designed for encoding, individualising and programming ( CIP) via the Software Service Station (SSS) and envisaged for use as part of the BMW diagnostic system (DIS) from DISPlus and Group Tester One (GT1). It is intended for testing and programming tasks from the E65 series, taking the place of the diagnostic head.

Specification:

1.OPS is intended for rapid programming of control units.

When operated at the SSS, no diagnostic or technical measuring pro-cedures are possible, as no measuring technology is incorporated; in this instance, OPPS / OPS is used predominantly for programming control units (flashing). Communication with the vehicle can be performed both via the MOST and via the OBD interface. The OBD interface is required for the power supply to the OPPS / OPS and has communication properties via which the vehicle can be identified and the data to be programmed can be determined. From CIP version 7.0, it is possible to delete fault code memories via OPPS / OPS.

2.OPS with DIS for diagnosis Supported Models:

Vehicle interface via OBD-II socket:
E87, E90, E91, E92, E60, E61, E63, E64, E65, E66, E70, E83, E85, E86, E38(OBD-II), E39(OBD-II ), E46(OBD-II ), E52, E53, R56, R50, R52, R53

3.OPS with SSS for programming Supported Models:

(1) Vehicle interface via OBD-II socket:
E87, E90, E91, E92, E60, E61, E63, E64, E65, E66, E70, E83, R56, R50, R52, R53
(2) MOST compatibility ( multichannel programming):
E87, E90, E91, E92, E60, E61, E63, E64, E65, E66, E70, R56, R50, R52, R53

Package List:

1. OPS multiplexer(Orange Head)
2. OBD-II diagnostic cable
3. LAN cable
4. OPS MOST cable
5. Hard disk

FAQ:

Q: How to update this product?
A: This product update is through hard disk.You can send the old hard disk back to us and we install the new software in the hard disk and send back to you.You only have to pay the shipping cost for this update.

Q: What is the difference between OPS and OPPS?
A: This two product almose the same function.Compared with OPS,the quality of OPPS better.

Q: Does this BMW OPS support an old models like E36,E34 and E39?
A: You can download the car model that BMW OPS support from our website.It can works on E36 E34 E39.

Q:What is the difference between two hard disks with fit all computer and T30 laptop?
A:1.The hard disk fit IBM T30,that means this hard disk only can used on IBM T30 laptop.for those customer who do not have IBM T30 laptop,if you want to use this hard disk,you have to purchase one IBM T30.The version for this hard disk is DIS V57,SSS V39.
2.The hard disk is fit all laptops.The advantage is it do not have much demand on laptop,only require your laptop support USB 2.0. But this one software installation need pay a little bit attention.the installation maunal you can download from our website. The version for this hard disk is DIS V55 SSS V32.
3.Compare this two version hard disk,the hard disk fit IBM T30 speed may more fast and stable.We suggest this one to those who have IBM T30.

Porsche Piwis Tester II is the latest professional tester for Porsche,with latest tester for Porsche,powerful functions,full access .
Latest Version: 12.1
Laptop:CF-30

Porsche Piwis Tester II with CF30 Laptop

Features:
1. Software Version: 12.1
2. Laptop: CF-30 (Second Hand)
3. Update: By CD or HDD (One Year for Free, It can not be updated online. 200USD for one time update after one year.)
4. Requires Online Modules: (F BCM R BCM DME ELV SRS KEY)

Porsche Piwis Tester II Description:

This is most poweful diagnose and offline programming tool for Porsche. Support key programming.If you want online programming, the cost is 105USD per time.

Porsche Piwis Tester II Functions:

1. Read/clear error code, catch data stream, computer programming match, component test, maintenance information consult, components site drawing, wiring diagram.
2. Porsche Piwis Tester II works with the old and latest Porsche cars. It is equipped with the Panasonic laptop and original software for the test. Porsche Piwis Tester II can help you diagnose and program the most new and old kind of Porsche cars. For example: 911(997)(991), Boxster/Cayman, (987), Cayenne up to MY 2010, Cayenne from MY 2011 and Panamera.
3. New Panamera can only be diagnosed by using Porsche Piwis Tester II. Based on current project planning, all earlier vehicle models will gradually be changed over to the new Porsche Piwis Tester II by the end of 2010. Porsche Piwis Tester I must be used for older models in the Porsche workshop until end of 2010.
4. Support for Porsche. Piwis Tester I will no longer be available once the earlier diagnostic programs have been transferred to Porsche Piwis Tester II.
5. When Porsche Piwis Tester II is distributed, it will contain one basic piece of software. This is necessary in order to start and configure the tester.

Porsche Piwis Tester II Support Systems:

ENGINE automatio transmission, air-conditioner, SRS, ABS, ASR, MPL, GM, Original antitheft System,KEYLESS GO system, OBDII system.

Porsche Piwis Tester II Vehicle Coverage:

1. 911(997) (991)
2. Boxster/Cayman (987)
3. Cayenne up to MY 2010
4. Cayenne from MY 2011
5. Panamera

Porsche Piwis Tester II Packing List:

1PC * Piwis Tester II VCI
2PCS * OBDII Cable
2PCS * USB Cable
2PCS * Extensional Cable
1PC * Used PANASONIC CF30

Porsche Piwis Tester II After Sales Service:

1. One year free maintenance
2. One year free updating
3. Long-term technical support

FAQ:

Q1: How to accomplish Porsche Piwis Tester II online function?
A1: Porsche Piwis Tester II online is via Team Viewer remote control, globally available.

Q2: How to handle with 90 days locking about Porsche Piwis Tester II?
A2: Porsche Piwis Tester II timing is unlimited, always showing 90 days.

Q3: How much software update charges for per year?
A3: The first year software update fee is free.

Q4: How to update ?
A4: By CD or HDD .

Q5: What is the current software version for Porsche Piwis Tester II?
A5: Version 12.100 Covers Porsche’s vehicle lists to the whole year of 2013’s.

Q6: If License area showing China or CN?
A6: The License Area does not show China or CN.

Q7: If there is manual available?
A7: Yes. Provide electronic English manual for free. Please e-mail us to obtain it.

Q8: If it is showing Porsche Logo when booting computer?
A8: Yes, CF-31R, CF30K are with Porsche Logo when booting computer.

Q9: What languages are available for Porsche Piwis Tester II?
A9: Language availability: German, British English, American English, French, Italian, Spanish,Japanese, Chinese, Russian, Portuguese, and Dutch.

Q10: License Validity?
A10: To support ONLINE function, valid certificate must be available for Porsche Piwis Tester II.

BMW Scanner 2.0.1 is a newer model than BMW Scanner 1.4.0 for BMW cars diagnose.It works with BMW 1,3,5,6 and 7 series. For all electronic control units DTC read and clear.

BMW Scanner 2.0.1

Description:

BMW Scanner E6x V2.0.1 is intended to work with BMW 1, 3, 5, 6 and 7 series in "new" chassis. It can not works for new model car model, it can do car till 2006. If you want do newer model and want do coding, please choose BMW OPS or BMW OPPS.
1. Connecting with all electronic control modules in the vehicle.
2. For all electronic control units reading identification data, sw/hw versions, user information fields.
3. For all electronic control units read and clear error (DTCs) memories - standart, shadow, history memory.
4. Possibility to read/program memory of electronic control units (including CAS modules).

Package List:

1pc x BMW Scanner 2.0.1
1pc x CD Driver

Volvo serial cable is PC based code reader and live data scan tool for Volvo cars including 800 Series, C70, S40, V40, S70, V70, 900 series, S90 and V90

Features:

New Design! 232 Chipset based design
Works excellently volvo fault code reader 1.3 serial
version Serial port design, supports the most chanllenging time-critical application like serial EEPROM programming

Supported Software:

OnBoardDiagnostics Versions: 1.3
Volvo FCR Communication Interfaces to connect a Volvo Vehicle to a PC
What can this interface be used for?
This interface (adapter) is used as an interface and an Serial cable to connect a volvo vehicle to a PC for on-board diagnostics (OBD). It is fully compatible with the diagnostic software version 1.3 from Volvo FCR. Volvo FCR is a software program that turns your PC into a sophisticated Volvo diagnostic tool.

Product Features and Benifits:

-Supports Volvo FCR version 1.3 or older
-Precision-molded diagnostic connector made to fit all volvo vehicles, even those with "tight" trim around diagnostic socket
-LED light indicating communication status
-High quality UL certified Serial Cables (equivalent to CE)
-Built-in, Electronic Protection from the "Aftermarket Radio Problem"

What is Volvo FCR?

Volvo FCR is a Windows-based Diagnostic Software for Volvo that emulates the functions of the dealers` very expensive proprietary scan tools. As the first aftermarket Volvo-Tool, it has the following features:
Volvo control module coverage includes:
-Engine - Petrol and br / ABS
-Automatic transmission
-SRS - airbag and other protection systems
-Driver and passenger seat memories
-Instruments, including service light reset
-Climate control - air conditioning
-Immobilizer
-Alarm
-Road traffic information
-Additional heater

How to use?

-For laptops and PCs, download the shareware 1.3
-Run it and follow the prompts to allow it to install itself.
Note: You must install volvo FCR on your PC's hard disk -- it will not work properly if you try running it directly from a floppy or CD. However, you can use a floppy or CD to move the distribution file from a PC with internet access to another PC that does not have internet access.
-Connect the interface between the computer and the car by plugging one end of the interface into a Serial (RS232) (or USB port ) on your PC and the other end directly into the OBD-II port present passenger vehicles.
-Turn the car's ignition switch ON. No need to start the engine.
-Start the Volvo program,
-Now it works. Make sure the software can reliably access all the control modules that it should in your car.

What Are the System and Computer Requirements?

-A PC running Windows: It is recommended to use at least a Pentium-100 (or AMD equivalent) with 16MB of RAM and Windows 95 or newer. Volvo FCR may work on some lesser PC's, but anything less than the above recommendation is unsupported. Windows 95, 98, ME, NT4, 2000, and XP are all fine. Available disk-space is a total non-issue, Volvo FCR requires less than 1 MB.

Package List:

1pc x VOLVO Serial Cable
1pc x CD Drive

HIM (H-onda & Acura Diagnostic System)is the latest diagnostic equipment for H-onda vehicles. Diagnostic functions available for vehicles of H-ONDA/ACURA from year 1992 to 2011.Test coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc. It supports CAN BUS system, and it can re-program the Auto ECU. This HIM is based on PC operation platform.

Double Board Diagnostic System HDS

Software Version: 2.027 this one is double board.

Hardware and Software Requirements:

PC or laptop with either Windows 2000 Professional (SP4 or later) or XP (SP1 or later). Hard disk drive with at least 400MB of free space
CD-ROM drive (if a high-speed Internet connection is not available)
RS232 port required to connect PC to HIM (PC version software only)
Monitor capable of displaying in VGA mode or above (1024 x 768 recommended)
Internet connection (high-speed connection recommended)

Description:

HIM (H-onda & Acura Diagnostic System)is the latest diagnostic equipment for H-onda vehicles.
Diagnostic functions available for vehicles of H-onda/ACURA from year 1992 to 2011.
Test coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc.
It supports CAN BUS system, and it can re-program the Auto ECU. This HIM is based on PC operation platform.

Function:

1.Functions Supported by H-onda/Acura Protocols

1) Reading and decoding fault codes from control blocks memory
2) Deleting fault codes
3) Displays system current parameters in digital form
4) Displays system? current parameters in graphical form
5) Combined displaying of data
6) Management of executive devices
7) Logs keeping - writing and keeping of digital parameters in memory
8) Special functions - changing of permissible settings of blocks, programming etc.

2.Functions Supported by OBD-II Protocols

1) Mode $01 - Displays system current parameters in digital form (up to 8 parameters at once);
2) Mode $02 - Displays parameters of freeze frame;
3) Mode $03 - Reading and decoding of fault codes from control block? memory;
4) Mode $04 - Deleting of fault codes (memory clearing);
5) Mode $05 - Displays results of oxygen sensors;
6) Mode $06 - Displays results of changeably controlled systems and components;
7) Mode $07 - Displays results of constantly controlled systems and components;
8) Mode $08 - Management of executive devices;
9) Mode $09 - Displays car identification info.

Package List:

1pc x HIM with OBDII Cable
1pc x DVD
1pc x 3 Pin Cable
1pc x RS232 Cable

ABRITES Commander for Chrysler, Dodge and Jeep is a software intended for learning of keys and Mileage Recalibration of these vehicles. Basic diagnostics of all control units, including, but not limited to Engine, Instrument Panel Cluster, Skim, Electronic Transmission Control. Pin code extraction from SKIM dump for older vehicles.

For EDC15C2 Diesel Engine Control Units the software also supports reading the writing the complete EEPROM.

Supported Engine Control Units

ADS-1X universal car diagnostic tool is a Full-line vehicles fault diagnostic scanner system, which is handheld no need computer to run with. ADS-1X scanner supports testing cars manufactured in Asia, America and Europe countries. ADS-1X supports all kinds of vehicle communication modes.

ADS-1X All Cars Fault Diagnostic Scanner

Product Feature:

Hardware is compatible with kinds of pc, both desktop and laptop.
Software is compatible with WIN98/2000/XP operating systems.
Can test various vehicles from Asian, European, American countries.
Supports a variety of automotive communication protocols including CAN bus.
On line automatic update service. Free for one year.
We update the software every week.
Two diagnostic ways: wireless and wired. Wireless distance can reach to 20 meters.
Data analysis supports full election and optional two modes.
Dynamic data supports recording and playing back function.

Technical Parameters:

Work voltage: 12V
Power: 5W
Ambient temperature:-20�C-40�C
Relative humidity: less than 90%

Laptop Specifications:

Screen Size: 10 inches Processor Speed: 2.0 GHz Memory (RAM): 1 GB Hard Drive Capacity: 160 GB
Operating System: Windows XP
Bluetooth: 2.4GHZ
Wireless Card
3G Port

Recommend Reason:

Special computer��electronic multifunction portfolio
High price-performance ratio
Anti copy function��security
Strong function��recording and playing back

ADS-1X Packing List:

PC:
COMPUTER (FOR ADS-1X)
Laptop
CHANGAN& SUZUKI

Diagnostic Adaptor:
UNIVERSAL-3
BENZ-38
MITSUBISH-12+16
BMW-20
VERSATILE -16
NISSAN-14

Communication Equipments:
CRYSLER-6
SMART BOX
GEELY-17
MIN BOX
KIA-20

Cables:
TOYOTA –17R
MAIN CABLE
GM-12
POWER SUPPLY CABLE
HONDA-3
CIGARETTE CABLE
OBDII-16
USB CABLE
CANBUS
BATTERY CLAMP
TOYOTA-17F

Accessories:
FIAT & DAIHATSU
WARRANTY CARD
AUDI-2+2
USB EXTEND LINE
CITROEN-2
CD-ROM

AllScanner VCX-Nano accord with standard of SAE-J2534(Pass-thru), connected with computer through high speed USB2.0. It will be used widely by car manufactures to make ECU online diagnosis and reprogramming .It also supports the third party and OEM original diagnostic software.

Newest Allscanner VCM VCX-Nano Scanner for Ford,Mazda,LandRover and Jaguar

Note:
1. This device no longer send with bluetooth now
2. The software can not be updated online. If we have the newer version, we will send the newer software or the link to you for updating

Specification:

Place of Origin: Guangdong, China (Mainland)
Software version: IDS V75 JLR V130

PC Interface:

Support USB2.0 HIGH SPEED CONNECTION.

Provide PC configuration tool,detect connection automatically,update fireware automatically.

Vehicle Interface:

1. Hardware integrated as J-1962 OBD-II connector , connect with vehicles without cable.

2. Support the following protocols:

1) ISO9141(K-Line)

2) ISO14230-2(K-Line)

3) ISO15765(CAN)

4) SALE-J1850PWM(Ford SCP)

5) SALE-J1850 VPW(GM Class2)

6) Single Wire CAN(GMLAN)

3. Support 3 wire CAN, 2 wire High CAN and Single wire CAN.

4. Programming voltage: 5v-20v FEPs output.

5. Support multi-channels work continuously , for example: 2 wire CAN or K-Line work at same time.

6. Large memory to increase date throughput, 32KByte can be reached by single transfer.

Accord with SAE-J2534

Fully compatible with SAE-J2534-1 & SAE-J2534-2.

Online ECU diagnosis and reprogramming.The same as the original tool.

High comparision of price and function,repeat to use,support with third party and OEM diagnostic application which was compatible with J2534.

Package List:

1pc x VCX Nano vehicle communication interface

1pc x Mini-USB cable

1pc x VCX Nano Driver Disk

1pc x VCX Nano User’s manual

1pc x Package box

DrewTech designed this product to be affordable for CarPCs, the aftermarket, and automotive enthusiasts. The Mangoose includes a J2534 driver and delivers full-speed (12mps) USB 2.0 performance.

Universal Car diagnostic Doctor JBT-VGP is the universal auto scanner, which can diagnose all Asian, European and American cars, such as BMW,BENZ,VW,TOYOTA, HONDA,MITSUBISHI,ISUZU, MAZDA,FORD,Buick CHERRY,SOUTHEAST,GEERLY, and so on.

Universal Car diagnostic Doctor JBT-VGP

Description:

Universal Car diagnostic Doctor JBT-VGP was color screen, self-learning function, warning function, and conveniently online upgrading function.
Universal Car Diagnostic Doctor JBT-VGP diagnose all Asian, European Oceania and American cars

It is the OE Supplier for VW, Audi, Nissan, Mitsubishi, Southeast .......;It has the original protocol for these cars, so it can realize almost all the functions for these cars, such as immobilizer, service reset, injector programming, and other functions.

Specification:

Type: Universal Auto Diagnostic tool
Voltage: 12V
Rate: 9-15w
Certificates: CE ISO9001 and ISO 14001
Brand: JBT
Working Condition:
Temperature:-40�C~+50�C
Relative Humidity: <90%
Screen: Color display
Platform: Self-researching BT-DDS
Special functions: Self-Learning and Judging/Warning/Data Store and printing
Update: Online update
Warranty: Main unit for 3 years and Cables for 1 year
Outer packing: Carton
Inner: Plastic Suitcase,

Testing Benz:
It is reading the DataStream of Benz, and it has 4 creative inventions:

I.SELF-LEARNING & JUDGEMENT:

Self-learning & Judgment function can help learn the standard data streams of vehicles automatically, whose data streams can be used in future as standard scopes. With these scopes, JBT-CS Series can help check whether the data streams of any same kind of cars are normal or not.
1. Any JBT-CS Series auto scanner can learn the data streams of cars as soon as connected to DLC of healthy cars. Explanation: When we have the cars that working well, we can record and store the data streams of the cars and the data streams can help set the maximum and minimum scope automatically due to the collected data from the healthy cars.
2. Comparing data streams and analyzing
Explanation: When we repair the same kind of other cars, we could use the data stream collected from healthy cars to do the comparison with the data streams being tested. If the data streams being tested are beyond the scope, it will display with special colors in order to inform maintenance people that the data streams are abnormal, technicians can judge what is wrong with the cars by the highlighted items.
3. Rename the data streams which have been learned.
Explanation: JBT-CS auto scanner supplies positions for users to store the data stream of different cars.

II. Over-Scope Alarm Display

JBT-CS auto scanner supplies the reference scope that common use when cars are idle. When the cars move, if the data stream is beyond the reference scope, it will be displayed with special color in order to help maintenance people judge cars problem.
1. Reference scope analysis.
Explanation: JBT-CS has reference scope that common use when cars are idle. It is convenient for users to compare the data stream being tested in order to judge cars trouble.
2. Warning color display.
Explanation: The reference scope supplied by JBT is the normal scope when the cars are idle. When the data stream being tested is beyond the scope, it will be displayed with special color, meaning the data stream is not normal, maintenance people should check the cars troubles according to the data streams which is displayed with color.

III. Data stream Memory and Printing

Characteristics:

Storing data stream as customers' like. Data stream could be printed out by JBT printer.

IV. Personality Operation Setting

JBT-CS auto scanner is color screen, and the color could be adjusted.
TFTE (Thin Film Transistor Engine)
TFTE improves the light and speed of display, make the color more light.
ACE (Acceleration Engine)
ACE makes auto scanner operation efficiently, makes data stream accumulate efficiently, and make auto trouble analysis efficiently.
CSE (Communication Stability Engine)
CSE makes systems afford pressure of high electric current, and could judge electric current

BMW Scanner V2.20 is intended to work with BMW 1, 3, 5, 6 and 7 series in "new" chassis. For chassis E60/E61(5') E63/E64(6') E65/E66(7') E87(1') E90/E91(3') X3-E83,X5-E53, X5-E70, X5-E71

BMW Scanner V2.20 K+DCAN

Function:

1. Connecting with all electronic control modules in the vehicle.
2. For all electronic control units reading identification data, sw/hw versions, user information fields.
3. For all electronic control units read and clear error (DTCs) memories - standart, shadow, history memory.
4. Possibility to read/program memory of electronic control units (including CAS modules).
5. Synchronization DME/DDE and CAS.

Supported Car Model:

1 Series: E81/E82/E87/E88
3 Series: E90/E91/E92/E93
5 Series: E60/E61
6 Series: E64
7 Series: E65
X Series: X3-E83,X5-E53, X5-E70, X5-E71

Supported System:

All systems of BMW series and OBD-II diagnostic system, including:
Engine system
Auto Transmission
SRS
ABS
Cruise system
Air-condition system
LKE
BUS etc.

Package List:

1pc x BMW Scanner V2.20

MUT-III can do gasoline vehicles and also FUSO diesel vehicle, support online update. It can do dignose and also ecu programming. Have memory card and ecu file on CD. Software install easily, can be used on any computer or laptop.

Mitsubishi MUT-3 Diagnostic Tool

Software Version: 2010.12
Supported Languages: English, French, Spainsh, Thai,Vietnamese, Czech, German, Greek, Italian, Turkish, Russian, Chinese
Supported Both Diagnosis and ECU Programmer

MUT-3 Advantage:
1. Never lock machine
2. Free update
3. With CF Card
4. Support gasoline vehicles(car) and Diesel vehicles( trucks, bus),
Operation system: Windows xp
IE requirement: IE 6.0 or 8.0

MUT-3 Description:

A personal computer (PC) is connected to the MUTIII unit and used as a system's control terminal, and communicates with a vehicle ECU through the VCI. In addition to being able to handle all diagnosis functions covered by the conventional MUT-II tester, the MUT-III system can display data as easy-to-understand diagrams and graphs on a large screen of the PC. Unlike the MUT-II, the MUT-III can retain data on all vehicles, from old to new models, classified according to destination in the PC's hard disk. This eliminates the awkward but essential job with the MUT-II, of switching the data list (communications protocol data and diagnosis item list database) by replacing the ROM pack with another according to the vehicle model and year model.

MUT-3 Function:

New functions that make use of the advantages of the PC are also being developed. For example, the workshop manual viewer is a useful function for mechanics as they no longer have to carry around a thick manual and search for relevant pages while working on a vehicle. The workshop manual viewer is currently available for certain vehicle models, and allows users to retrieve the pages containing the failure code for a particular problem at the push of a button.

MUT-3 Set Includes

1 Vehicle Communication Interface (V.C.I.) (MB991824)
A communication interface used to connect the vehicle ECUs and the PC.

1) When connected with the PC
-Vehicle diagnosis (Interactive fault diagnosis)
-SWS communication; CAN communication support
-Drive recorder
-Volt, Ohm, measurement
-Fuel pressure measurement (Not available in US)

2) When used with the V.C.I.unit (disconnected from PC)
-V.C.I. Stand-alone diagnosis
-Drive recorder
-ECU reprogramming
-Volt,Ohm measurement
-Belt Tension measurement

2 Memory Card
Stores data for ECU reprogramming, drive recorder, etc.
This is a standard, off-the-shelf memory card. The one provided (with reprogramming data) is a Compact Flash memory card (MB991853) inserted into the CF card adapter (MB991939).

3 M.U.T.-III Main Harness A (MB991910)
Used when connecting the V.C.I. with vehicles that have only one 16-pin diagnosis connector.
-Supports fault diagnosis and ECU updating on the above-described vehicles
-Supports the CAN communication system

4 M.U.T.-III Main Harness B (MB991911)
Used when connecting V.C.I. with vehicles that have a16-pin + 12-pin or 16-pin + 13-pin diagnosis connector.
For models equipped with only 12-pin (or 12-pin + 12-pin)diagnosis connector, connect the M.U.T.-II adapter harness(MB991498) to the end of this harness in the same as M.U.T.-II, and power is supplied from the cigarette lighter socket.

MVCI is a high performance factory diagnostics for TOYOTA TIS. MVCI is compatible with Toyota, Lexus, and Scion vehicles over the J1962 DLC3 connector.

2012 New MVCI 3 IN 1

Software Version: 8.10.021
Supported Languages: English, French, Spanish, Portuguese, Thai, Turkish, Vietnamese, Chinese, Chinese(Taiwan), Indonesian

What you have to pay attention when using this tool?
1. Your computer must be windows XP system.
2. Please choose area EUROPEAN when you installing the software. Then it will not ask you for activation code.

Specification:

1. Worked Car Model
H-onda, Toyota, Lexus and Volvo.

2. Feature
Fully compatible with Toyota TIS Techstream
Supports Diagnostics, Reprogramming, Active tests
Supports most 1996 and newer Toyota, Lexus, and Scion vehicles with OBDII/DLC3 diagnostics
Fully compatible with SAE J2534
Programmable power supply
Able to apply 5V-24V to OBD pins 6,9,11,12,13,14 or AUX 2.5mm stereo connector
Able to apply GND to OBD pins 6,9,11,12,13,14,15 or AUX 2.5mm stereo connector
RGB status LEDs

3. Supported Protocols
Operating Temperature:-20 to 70
Storage Temperature: -40 to 85
Diagnostic Interface:16 PIN
USB Interface:USB 2.0
Power:DC 5 V - 36 V
Consumption:0.7 W

Package List:

1.User Manual: Instructions on tool operations
2.Driver CD: Includes user manual, drivers, and etc.
3.OBD II cable: Communicates between tool and vehicle
4.USB cable: Communicates between tool and PC/Laptop
5.Carry case: A nylon case to store the tool when not in use.
6.Main unit

FLY 200 PRO supports all models of Ford and Mazda and contains all function of the original VCM / IDS for Ford and Mazda.FLY200 PRO compared with FLY200,it can do programmer for all ford and Mazda cars.

FLY 200 PRO For FORD MAZDA

Highlights:
1. Software Version: Ford: V84
JLR: V134
Mazda: V82
2. Supported Languages: English, Spanish, German, Portuguese, French, Italian, Russian, Japanese, Greek, Slovenian, Danish, Czechic, Vietnamese, Turkish, Thai, Swedish, Polish, Norwegian, Dutch, Korean, Indian, Hungarian, Finnish, Chinese
3. Cover Models: Cover Ford and Mazda.
(FLY 200 PRO supports all models of Ford and Mazda and Contains all function of the original VCM / IDS for Ford and Mazda.)
4. Coverage System: Cover Ford and Mazda all the electronic control system.

FLY 200 PRO Functions:

Scantool Diagnostics

All ford and mazda vehicles(Include all functions of original VCM/IDS)

Vehicle Reprogramming

All ford and mazda vehicles(Include all functions of original VCM/IDS)

Immobi and Smart Key

All ford and mazda vehicles(Include all functions of original VCM/IDS)

FLY 200 PRO Package List:

1.FLY 200 Pro vehicle communication module
2.OBD-16 Cable
3.USB 2.0 Cable
4.Power Supply
5.Carry Box

Autel MaxiDAS� DS708 works with Asian, European and American cars. For Toyota, Honda, Nissan and Renault, its functions have reached their original tool funcitions. For Volvo and Mitsubishi year before 2005, it has reached original functions.

Autel MaxiDAS� DS708

Highlights:

2 Autel Maxidas DS708 English Supported European Car Models

3 Autel Maxidas DS708 English Supported Asian Car Models

Autel Maxidas DS708 Component Descriptions

Determination of chassis, model, engine, gearbox and complete set. BMW scanner 1.4.0 is a tool for scanning and diagnosing vehicles. Although BMW scanner can perform IKE / LCM / EWS.

BMW Scanner 1.4.0V

Functions:

Determination of chassis, model, engine, gearbox and complete set

1. Searching of all units and reading:
1) Identification data
2) VIN and ADFG
3) programming info (UIF)
4) errors (DTC)

2. Reading and saving in files:
1) program memory
2) EEPROM
3) coding data
4) amount of DTCs and DTCs shadow-memory
5) live data
6) programming info (User Info Fields)

3. Copying ZCS (IKE - EWS) and FA (IKE - LCM) coding and other functions in various units

4. "Unlocked" functions to show possibilities of full version

1) DTCs description in DME MS43.0, EWS3, SRS MRS4
2) Clearing DTCs in same units
3) EWS-DME synchronization code in DME MS43.0
4) Live data in DME MS43.0, EWS3, SRS MRS2 and MRS4
5) Status of all keys in EWS3
6) EWS3 coding data interpretation
7)Equipment correction in SRS MRS4

Package List:

1pc x BMW SCANNER 1.4.0 main unit
1pc x USB Cable
1pc x CD Driver
